Marine Cast Iron Globe Valve JIS F7305 5K

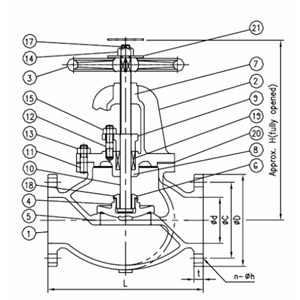

| Code | Size | L | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | H | Weight |
| กก | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 750201 | 50 | 210 | 130 | 105 | 4-D15 | 16 | 270 | 14.70 |
| 750202 | 65 | 250 | 155 | 130 | 4-D15 | 18 | 300 | 21.30 |
| 750203 | 80 | 280 | 180 | 145 | 4-D19 | 18 | 310 | 27.70 |
| 750204 | 100 | 340 | 200 | 165 | 8-D19 | 20 | 360 | 40.80 |
| 750205 | 125 | 410 | 235 | 200 | 8-D19 | 20 | 390 | 57.60 |
| 750206 | 150 | 480 | 265 | 230 | 8-D19 | 22 | 445 | 80.30 |
| 750207 | 200 | 570 | 320 | 280 | 8-D23 | 24 | 530 | 139.00 |
| 750208 | 250 | 740 | 385 | 345 | 12-D23 | 26 | 650 | 246.00 |
| 750209 | 300 | 840 | 430 | 390 | 12-D23 | 28 | 740 | 377.00 |
| 750210 | 350 | 840 | 480 | 435 | 12-D25 | 30 | 840 | 462.00 |
| 750211 | 400 | 1050 | 540 | 495 | 16-D25 | 30 | 940 | 647.00 |
