Marine Cast Bronze Angle Globe Valve JIS F7302 5k

[Search Related Products]

Angle Storm Valve F7302 5k

Marine Cast Bronze Angle Globe Valve JIS F7302 5k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type£ºFlange.

4.PN:5k.

5.DN:15mm-65mm.

6.Main material:

  • Body/Bonnet:BC6/FCD450;
  • Seat:BC6/FCD450;
  • Stem:H62/SS410;
  • Disc:BC6/FCD450.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Bronze Angle Globe Valve JIS F7302 5k:

IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
750131

F7302

5k

Globe

15 55 80 60 4x¦µ12 1.98
750132 20 60 85 65 4x¦µ12 2.73
750133 25 65 95 75 4x¦µ12 3.44
750134 32 80 115 90 4x¦µ15 4.77
750135 40 85 120 95 4x¦µ15 5.99
750136 50 100 130 105 4x¦µ15 10.10
750137 65 115 155 130 4x¦µ15 15.60

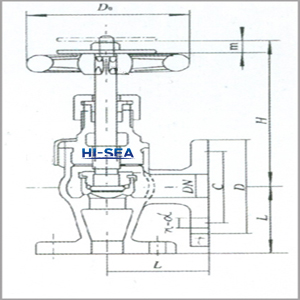

10.Drawing of Marine Cast Bronze Angle Globe Valve JIS F7302 5k:

Angle Globe Valve F7307 5k

11.Certificate available:

Certificate
