Marine pressure Gauge Valve CB312-1977

Marine pressure Gauge Valve CB312-1977:

1.Design standard:CB312-1977.

2.End standard:CB56-80.

3.End type:Thread.

4.PN:4.0/10.0/16.0Mpa.

5.DN:6mm.

6.Main material:

• Body/Bonnet:ZCuSn16Si4;
• Seat:ZCuSn16Si4;
• Stem:2Cr13;
• Disc:QAl9-2.

7.Application:Water,air,oil and steam piping.

8. Fundamental dimensions of Marine pressure Gauge Valve CB312-1977:

9.Drawing of Marine pressure Gauge Valve CB312-1977:

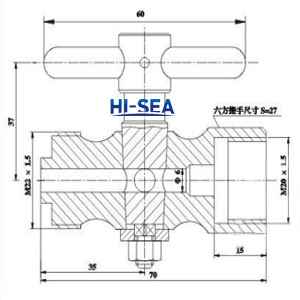

Type A:

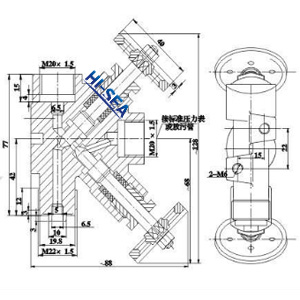

Type B:

10.Certificate available:
