JIS Marine Gate Valve

JIS Marine Gate Valve


1. Brief Introduction of JIS Marine Gate Valve:

It is Marine Bronze Rising Stem Type Gate Valve JIS F7367 5K.

Design Standard: JIS F7367-1996

Flange Size as Per JIS B2220-5K

Hydraulic Test Pressure: Body-1.05 Mpa, Seat-0.7 Mpa

Test Standard: JIS 7400-1996


2. Our advantages:

(1). Designing and management of the products are under CAD/CAM/CAPP/PDM.

(2). The size of our gate valves have been expended to more than 50 categories.

(3). CCS, LR, DNV, BV, ABS, DNV-GL, RINA, NK Certificate is available.

(4). Our company has the ability to supply all valves for complete ship set.


3. Material:

Part Name

Material Name

Material Mark

Body

Bronze

BC6

Bonnet

Bronze

BC6

Disc

Bronze

BC6

Stem

Brass

C3771BD

Gasket

Non-asbestos

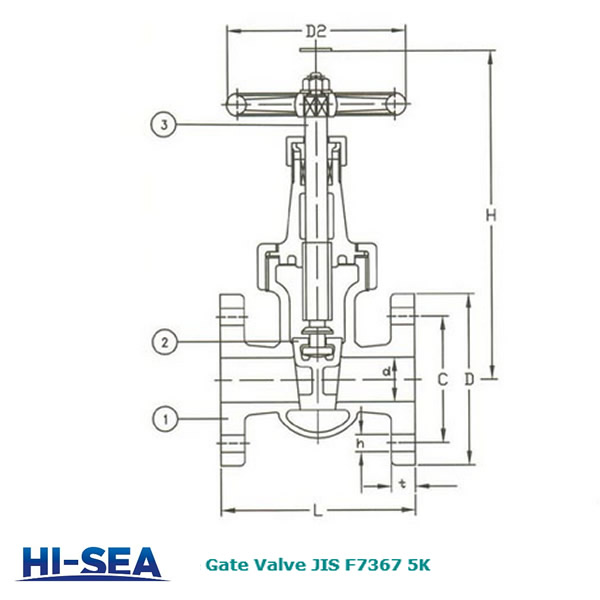

4. JIS Marine Gate Valve Main Data for Drawing (mm):

IMPA CODE

Size

L

D

C

Number of Bolt Hole

h

t

H

D2

KG

750951

15

90

80

60

4

12

9

175

80

2.29

750952

20

100

85

65

4

12

10

200

100

2.98

750953

25

110

95

75

4

12

10

220

125

4.1

750954

32

130

115

90

4

15

12

250

125

5.79

750955

40

140

120

95

4

15

12

290

140

7.78

JIS Marine Gate Valve

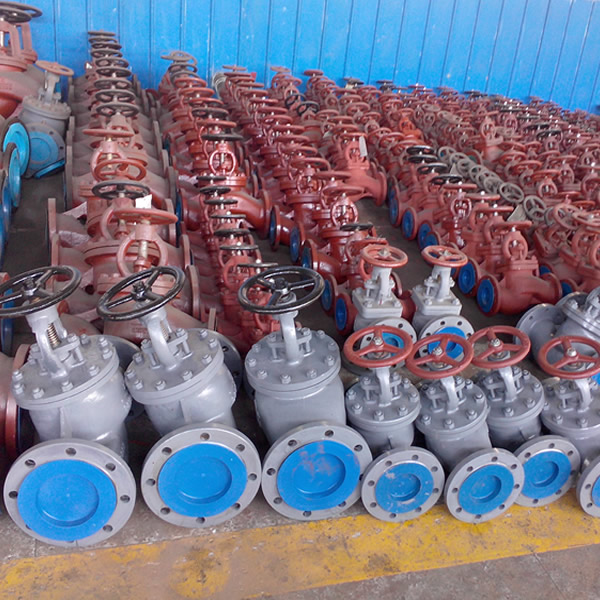

5. JIS Marine Gate Valve Factory:

JIS Marine Gate Valve
