Marine Cast Iron Gate Valve CBM1091-81

Marine Cast Iron Gate Valve CBM1091-81

1. Brief Introduction:

Model: CBM1091-81

Media: Sea Water,Fresh Water and Lubricant Oil.

PN:0.5/0.4/0.2Mpa.

DN:50mm-500mm.

Material: Cast Iron.

Operate: Manual.

2. Features:

Simple Structure for Easy Maintenance

Good Performance

Long Working Lifetime

3. Data for Marine Cast Iron Gate Valve CBM1091-81:

PN/Mpa

DN/mm

Structure dimension

Flange connection dimension

Bolt

Hand wheel

Weight

L

H

D

e

g

h

t

n

Th.

D0

S

kg

0.5

50

180

340

130

105

88

15

16

4

M12

180

14

20.0

65

190

372

155

130

112

15

18

4

M12

180

14

24.3

80

200

430

180

145

125

19

18

4

M16

200

17

34.0

100

230

459

200

165

145

19

20

8

M16

200

17

40.0

125

250

527

235

200

180

19

20

8

M16

225

19

62.1

150

270

566

265

230

210

19

22

8

M16

225

19

72.8

0.4

200

290

658

320

280

255

23

24

8

M20

250

22

104.4

250

330

755

385

345

320

23

26

12

M20

280

24

159.0

300

370

840

430

390

365

23

28

12

M20

280

24

204.5

350

410

945

480

435

405

25

30

12

M22

320

27

273.8

400

470

1045

540

495

465

25

30

16

M22

360

27

350.4

0.2

450

500

1240

605

555

525

23

28

16

M20

400

32

533.5

500

550

1327

655

605

575

23

28

20

M20

450

32

648.0

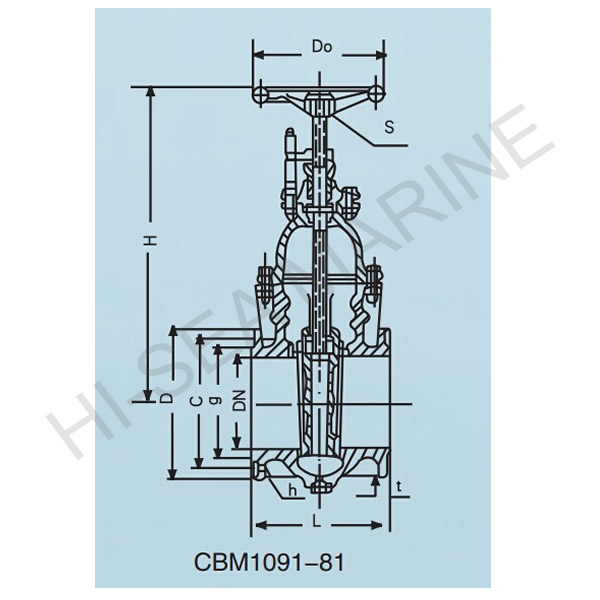

4.Drawing of Marine Cast Iron Gate Valve CBM1091-81:

Marine Cast Iron Gate Valve CBM1091-81

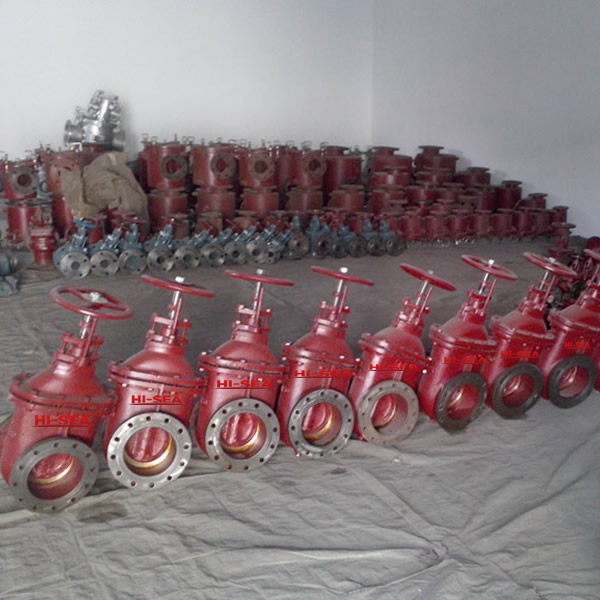

5.Marine Cast Iron Gate Valve CBM1091-81 Factory Picture:
