Marine Cast Bronze Foot Valve JIS F3056 5k/10k

[Search Related Products]

3056

Marine Cast Bronze Foot Valve JIS F3056 5k/10k:

1.Test standard:JISF7400.

2.End standard:JIsb2220.

3.End type:Flange.

4.PN:5k/10k.

5.DN:40mm-80mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Disc:BC6.

7.Specification of Marine Cast Bronze Foot Valve JIS F3056 5k/10k:

Marine Cast Bronze Foot Valve JIS F3056 5k

DN/mm

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

40

130

120

95

4x¦µ15

50

142

130

105

4x¦µ15

80

194

180

145

4x¦µ19

Marine Cast Bronze Foot Valve JIS F3056 10k

DN/mm

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

40

130

140

105

4x¦µ19

50

142

155

120

4x¦µ19

80

194

185

150

8x¦µ19

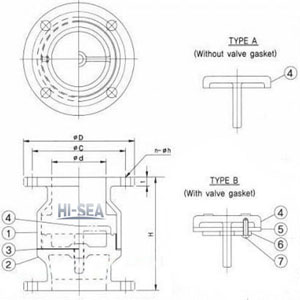

8.Drawing of Marine Cast Bronze Foot Valve JIS F3056 5k/10k:

3056cad

9.Certificate available:

Certificate01
