Marine Flanged Angle Safety Valve CB304-1992

[Search Related Products]

Marine Flanged Angle Safety Valve CB304-1992

Marine Flanged Angle Safety Valve CB304-1992:

1.Design standard:CB304-1992.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.DN:25mm-80mm.

5.Main matrial:

  • Body/Bonnet:HT200/ZG230-450;
  • Seat:ZCuSn10Zn2;
  • Stem:QAT9-2;
  • Disc:ZCuSn10Zn2.

6.Application:Sea water piping,fresh water piping and steam piping.

7.Function:Such valves are used for pressure control.

8.Fundamental dimensions of Marine Flanged Angle Safety Valve CB304-1992:

DN/mm

Working pressure

Mpa

Flange connection dimension

Height

Structure length

D/mm

C/mm

n

d/mm

H/mm

L/mm

25

0.1¡«0.3

115

85

4

14

174

100

£¾0.3¡«0.6

£¾0.6¡«0.9

32

0.1¡«0.3

140

100

4

18

200

105

£¾0.3¡«0.6

£¾0.6¡«0.9

40

0.1¡«0.3

150

110

4

18

210

115

£¾0.3¡«0.6

£¾0.6¡«0.9

50

0.1¡«0.3

165

125

4

18

252

125

£¾0.3¡«0.6

£¾0.6¡«0.9

65

0.1¡«0.3

185

145

4

18

316

145

£¾0.3¡«0.6

£¾0.6¡«0.9

80

0.1¡«0.3

200

160

8

18

346

155

£¾0.3¡«0.6

£¾0.6¡«0.9

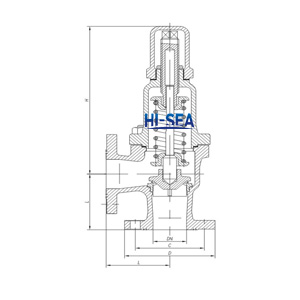

9.Drawing of Marine Flanged Angle Safety Valve CB304-1992:

Marine Flanged Angle Safety Valve CB304-1992

10.Certificate available:

Marine Flanged Angle Safety Valve CB304-1992
