Marine Air Vent Head CB/T3594-1994 type FS

[Search Related Products]

Marine Air Vent Head CB/T3594-1994 type FS

Marine Air Vent Head CB/T3594-1994 type FS£º

1.Design standard:CB/T3594-1994.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.DN:50mm-350mm.

5.Main material:

  • Body/Bonnet:FC/FCD;
  • Seat:NBR;
  • Disc:SS304.

6.Application:Oil cabin and water cabin air tube top.

7.Function:Such air vent heads are used for pressure balance.

8.Fundamental dimensions of Marine Air Vent Head CB/T3594-1994 type FS:

DN

Structure dimension

Thickness

Flange connection dimension

Float

Weight/kg

L

L1

H

¦Ä

D

D1

D2

b

n

d0

S

Bunker

Tank

50

125

160

250

7

165

125

102

20

4

18

65

12.5

12.6

65

170

200

285

185

145

122

88

19.1

19.2

80

200

225

325

200

160

133

8

105

22.4

22.6

100

245

275

380

8

220

180

158

22

130

34.1

34.4

125

300

325

440

250

210

184

150

49.3

49.8

150

345

370

510

9

285

240

212

24

22

190

94.7

95.7

200

450

475

630

340

295

268

245

157

158

250

565

590

750

10

395

350

320

26

12

305

222

223

300

670

700

870

11

445

400

370

345

302

3.4

350

280

820

1020

12

505

460

430

16

450

459

461

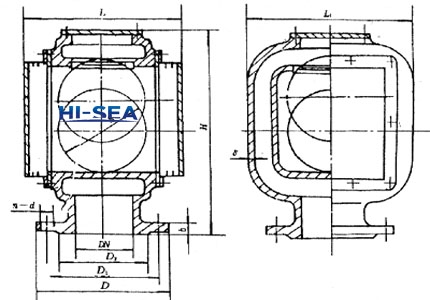

9.Drawing of Marine Air Vent Head CB/T3594-1994 type FS:
