Marine Cast Steel Globe Valve JIS F7313 20K

[Search Related Products]

7313

Marine Cast Steel Globe Valve JIS F7313 20K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:20k.

5.DN:32mm-250mm.

6.Main material:

  • Body/Bonnet:ZG230-450;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Steel Globe Valve JIS F7313 20K :

Size L Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
32 190 135 100 4x¦µ19 18 270 14.4
40 200 140 105 4x¦µ19 18 290 16.0
50 230 155 120 8x¦µ19 18 305 21.6
65 270 175 140 8x¦µ19 20 345 30.4
80 300 200 160 8x¦µ23 22 385 43.5
100 350 225 185 8x¦µ23 24 440 62.3
125 430 270 225 8x¦µ25 26 500 95.7
150 500 305 260 12x¦µ25 28 550 133.3
200 560 350 305 12x¦µ25 30 630 296.1
250 660 430 380 12x¦µ27 34 725 339.1

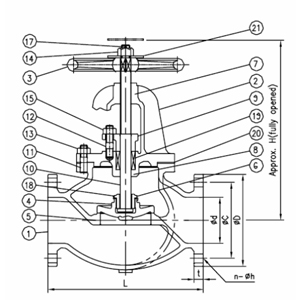

10.Drawing of Marine Cast Steel Globe Valve JIS F7313 20K :
