Marine Cast Bronze Globe Valve JIS F7346 5k

[Search Related Products]

7346

Marine Cast Bronze Globe Valve JIS F7346 5k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Stem:BRASS;
  • Disc:BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Bronze Globe Valve JIS F7346 5k:

DN/mm

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

15

100

80

60

4x12

20

110

85

65

4x12

25

120

95

75

4x12

32

140

115

90

4x15

40

160

120

95

4x15

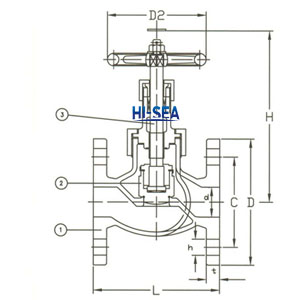

10.Drawing of Marine Cast Bronze Globe Valve JIS F7346 5k:

7346cad

11.Certificate available:

Certificate
