Marine Cast Iron Angle Globe Valve JIS F7308 10k

[Search Related Products]

F7308

Marine Cast Iron Angle Globe Valve JIS F7308 10k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:10K.

5.DN:50mm-300mm.

6.Main material:

  • Body/Bonnet:FC-HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Applicaton:Oil piping,water piping and steam piping.

8.Function:Such valve are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Iron Angle Globe Valve JIS F7308 10k:

IMPA Type DN Face to face/L(mm) Flange diam,/D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
750246

F7308

10k

Globe

50 120 155 120 4x¦µ19 18.20
750247 65 130 175 140 4x¦µ19 25.40
750248 80 140 185 150 8x¦µ19 27.40
750249 100 160 210 175 8x¦µ19 40.60
750250 125 180 250 210 8x¦µ23 69.90
750251 150 205 280 240 8x¦µ23 81.00
750252 200 230 330 290 12x¦µ23 125.00
750253 250 290 400 355 12x¦µ25 211.00
750254 300 320 445 400 16x¦µ25 293.00
750255 350 360 490 445 16x¦µ25 386.00
750256 400 420 560 510 16x¦µ27 544.00

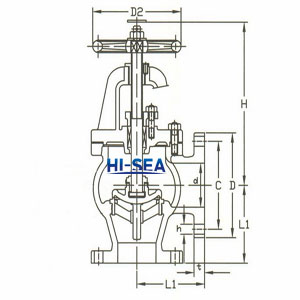

10.Drawing of Marine Cast Iron Angle Globe Valve JIS F7308 10k:

F7308

11.Certificate available:

Certificate
