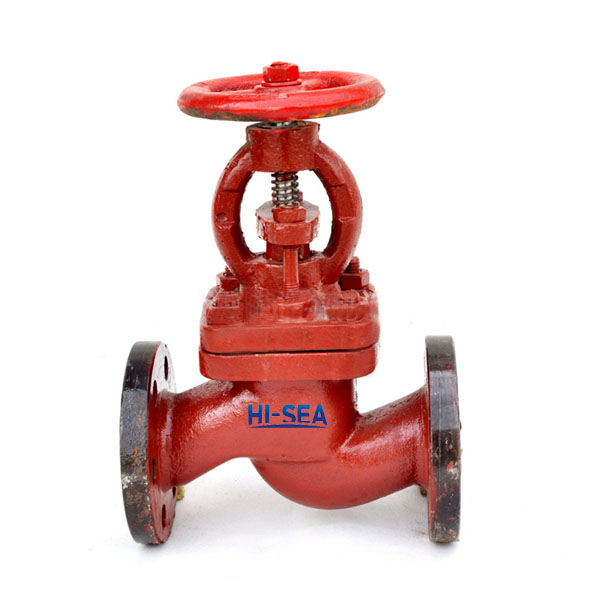

Marine Cast Iron Flanged Stop Valve CBM1081-81

Marine Cast Iron Flanged Globe Valve CBM1081-81:

1.Design standard:CBM1081-81.

2.End standard:CBM1006.

3.End type:Flange.

4.PN:1.0Mpa.

5.DN:50mm-250mm.

6.Main material:

  • Body/Bonnet:HT20-40;
  • Seat:ZQAl9-2;
  • Stem:ZQAl9-2;
  • Disc:ZQSn10-2.

7.Application:Sea water,fresh water,fuel oil and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Fundamental dimensions of Marine Cast Iron Flanged Globe Valve CBM1081-81:

DN/mm
Flange connection dimension
Height
Structure length
D/mm
C/mm
n
d/mm
H/mm
L/mm
Type A
Type B
Type A
Type B
50
155
120
4
19
288
378
220
120
65
175
140
4
19
310
407
270
130
80
185
150
8
19
345
444
300
140
100
210
175
8
19
374
485
350
160
125
250
210
8
23
426
546
420
180
150
280
240
8
23
487
620
490
205
200
330
290
12
23
599
766
570
230
250
400
355
12
25
750
907
740
290

10.Drawing of Marine Cast Iron Flanged Stop Valve CBM1081-81:

Marine Cast Iron Flanged Stop Valve CBM1081-81

11.Certificate available:

Marine Cast Iron Flanged Stop Valve CBM1081-81
