Marine Forged Steel Angle Valve JIS F7422 20k

Marine Forged Steel Angle Valve JIS F7422 20k:

1.Test standard:JISF7400.

2.End standard: JISB2220.

3.End type:F/S.

4.Pressure:20k.

5.DN:

  • 'F'type:15mm-25mm;
  • 'S'type:6mm and 10mm.

6.Main material:

  • Body:SC49;
  • Stem:SUS403;
  • Disc:SUS402J1.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Forged Steel Angle Valve JIS F7422 20k:

Marine Forged Steel Angle Valve JIS F7422 20k 'F'type

DN/mm

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

15

75

95

70

4x¦µ15

4.20

20

80

100

75

4x¦µ15

5.60

25

95

125

90

4x¦µ19

7.20

Marine Forged Steel Angle Valve JIS F7422 20k 'S' type

DN/mm

L1/mm

L2/mm

K/mm

B2/mm

D3/mm

Weight/kg

6

42

38

12

30

M20x1.5

1.47

10

46

45

16

41

M24x2

1.75

10.Drawing of Marine Forged Steel Angle Valve JIS F7422 20k:

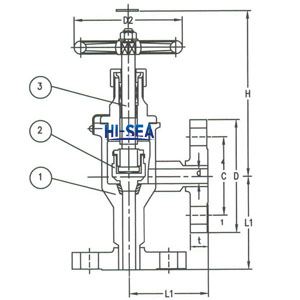

'F' type

7422fcad

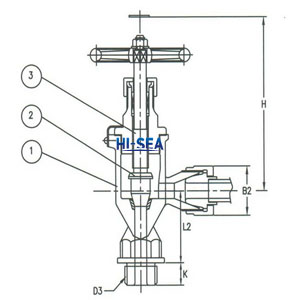

'S'type

7422scad

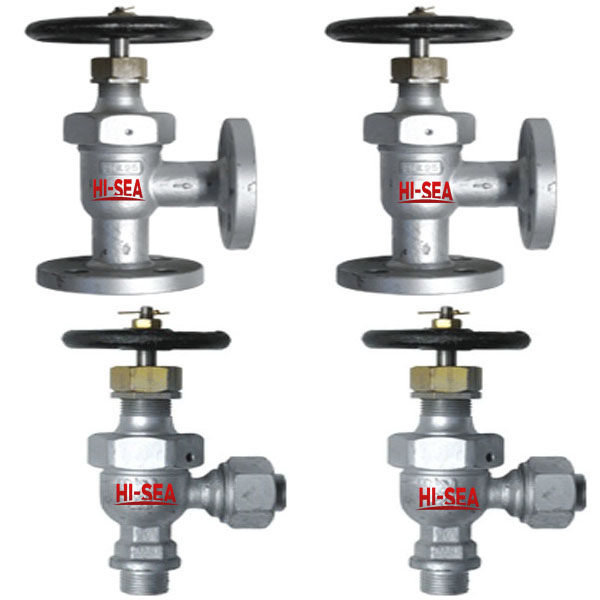

7422combine

11.Certificate available:

Certificate01
