Marine Forged Steel Globe Valve JIS F7421 20k

Marine Forged Steel Globe Valve JIS F7421 20k:

1.Test standard: JISF7400.

2.End standard: JISB2220.

3.End type:F/S/U.

4.Pressure: 20k.

5.DN:

  • 'F'type:15mm-20mm;
  • 'S'type:6mm and 10mm;
  • 'U'type:6mm and 10mm.

6.Main material:

  • BodySC49
  • Stem:SUS403;
  • Disc:SUS402J1.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Forged Steel Globe Valve JIS F7421 20k:

DN/mm

Type

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

15

'F'

140

95

70

4x15

4.40

20

160

100

75

4x15

5.90

25

180

125

90

4x19

7.70

10.Drawing of Marine Forged Steel Globe Valve JIS F7421 20k:

7421F

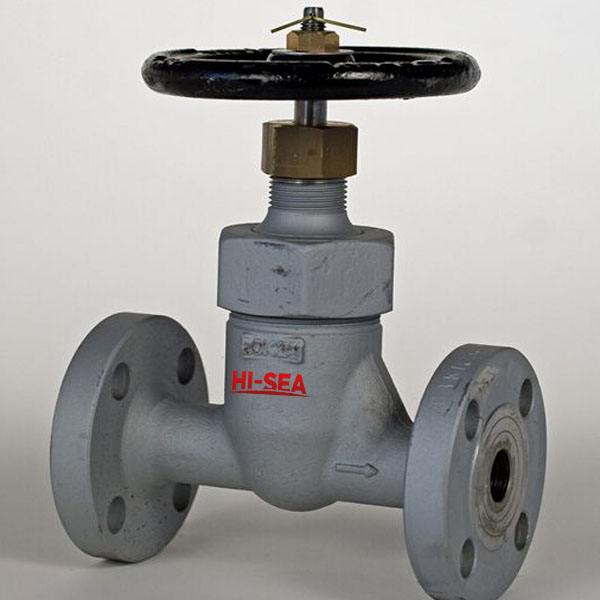

7421flange

11.Certificate available:

Certificate01
