Marine Sight Glass CB/T422-1993 Type J/JS

[Search Related Products]

Marine Sight Glass CB/T422-1993 Type J/JS

Marine Sight Glass CB/T422-1993 Type J/JS:

1.Design standard:CB/T422-1993.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.25/0.4Mpa.

5.DN:

  • Type J:40mm-100mm;
  • Type JS:20mm-200mm.

6.Main material:

  • Body:HT200;
  • Transparent board:Common or boron-silicon glass;
  • Transparent pipe:Plexiglass.

7.Application:Sea water piping,fresh water piping and oil piping.

8.Fundamental dimensions of Marine Sight Glass CB/T422-1993 Type J/JS:

Chart 1 Fundamental dimensions of type J:

PN

DN

Structure dimension

Thickness

Flange connection dimension

Bolt

Glass

Thickness

Weight

Mpa

mm

H/mm

d1/mm

/mm

D/mm

D1/mm

D2/mm

d0 /mm

b/mm

n

Th.

kg

0.4

40

160

40

8

125

93

74

15

16

6

M14

6

5.6

50

164

50

135

103

84

6.3

0.25

65

196

65

9

155

123

104

15

8

11.3

80

220

80

170

138

118

8

13.1

100

250

100

10

190

158

138

16.6

Chart 2 Fundamental dimensions of type JS:

PN

DN

Structure dimension

Thickness

Flange connection dimension

Bolt

Glass

Thickness

Weight

Mpa

mm

H/mm

d1/mm

/mm

D/mm

D1/mm

D2/mm

d0/mm

b/mm

n

Th.

kg

0.4

20

110

20

7

90

65

50

11

14

4

M10

6

0.95

25

140

25

100

75

60

1.43

32

140

32

120

90

70

14

16

M12

4.64

40

160

40

8

130

100

80

6.22

50

164

50

140

110

90

6.95

0.25

65

196

65

9

160

130

110

8

12.11

80

220

80

190

150

128

18

18

M16

14.14

100

250

100

10

210

170

148

18.41

125

280

125

240

200

178

20

8

10

25.30

150

310

150

11

265

225

202

29.34

175

338

175

295

255

232

22

12

30.20

200

370

200

320

280

258

31.25

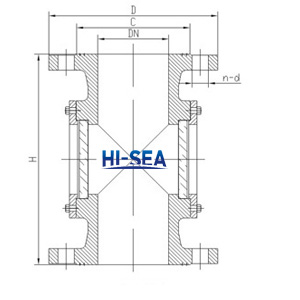

9.Drawing of Marine Sight Glass CB/T422-1993 Type J/JS:
