Marine Cast Iron Lift Check Globe Valve JIS F7358 5K

[Search Related Products]

F7358

Marine Cast Iron Lift Check Globe Valve JIS F7358 5K :

1.Test standard:JISF7100.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-200mm.

6.Main material:

  • Body/Bonnet:HT200;
  • Seat:SS410/BC6;
  • Disc:SS410/BC6.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for preventing refluence.

9.Specification of Marine Cast Iron Lift Check Globe Valve JIS F7358 5K :

Size L Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
50 210 130 105 4-15 16 107 11.3
65 250 155 130 4-15 18 124 16.8
80 280 180 145 4-19 18 129 23.2
100 240 200 165 8-19 20 146 32.5
125 410 235 200 8-19 20 166 48.1
150 480 265 230 8-19 22 188 67.9
200 570 320 280 8-23 24 212 115.0

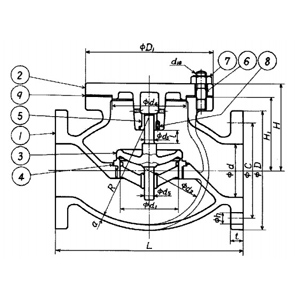

10.Drawing of Marine Cast Iron Lift Check Globe Valve JIS F7358 5K :
11.Marine Cast Iron Lift Check Globe Valve JIS F7358 5K factory:
7358
