Marine Ductile Iron Flanged Oil tank Gate Valve CB/T3591-1994

Marine Ductile Iron Flanged Oil tank Gate ValveCB/T3591994:

1.Design standard:CB/T3591-1994.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:1.0Mpa.

5.DN:80mm-400mm.

6.Main material:

  • Body/Bonnet:FCD450;
  • Seat:FCD450;
  • Stem:SS410/BS;
  • Disc:SS410/BC6.

7.Application:Sea water piping,fresh water piping and oil piping.

8.Function:Such valves are used for on-off duty.

9.Fundamental dimensions of Marine Ductile Iron Flanged Oil tank Gate ValveCB/T3591994:

DN

mm

Structure dimension

Thickness

Flange

Bolt

Stem

Hand

wheel

Lift

range

Weight

kg

L/mm

H/mm

A

B

¦Ä /mm

D/mm

D1/mm

D2/mm

d0 /mm

b/mm

n

Th.

d1

S/mm

D0 /mm

m

A

B

80

220

440

375

9

170

138

118

15

16

8

M14

Tr26x10(P5)LH

19

200

92

38.7

36.8

100

230

470

400

10

190

158

138

15

16

8

M14

Tr26x10(P5)LH

19

200

112

44.5

42.6

125

245

515

445

11

215

183

164

15

16

10

M14

Tr28x10(P5)LH

22

225

138

56.5

54

150

260

560

470

12

240

208

190

15

16

12

M14

Tr28x10(P5)LH

24

250

165

69.9

66

200

290

660

555

14

310

273

250

17

21

12

M16

Tr32x12(P6)LH

24

280

215

110

105

250

335

780

655

16

380

336

310

22

24

14

M20

Tr32x12(P6)LH

27

360

270

157

148

300

360

885

745

17

435

391

364

22

26

16

M20

Tr44x16(P8)LH

32

400

320

231

222

350

400

990

850

18

485

441

414

22

26

18

M20

Tr44x16(P8)LH

32

450

370

318

306

400

450

1100

960

19

545

496

165

26

28

18

M24

Tr50x16(P8)LH

36

500

420

370

355

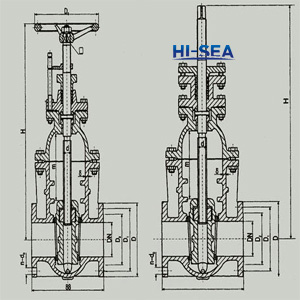

10.Drawing of Marine Ductile Iron Flanged Oil tank Gate ValveCB/T3591994:

Marine Ductile Iron Flanged Oil tank Gate Valve CB/T3591-1994

11.Certificate available:

Marine Ductile Iron Flanged Oil tank Gate Valve CB/T3591-1994
