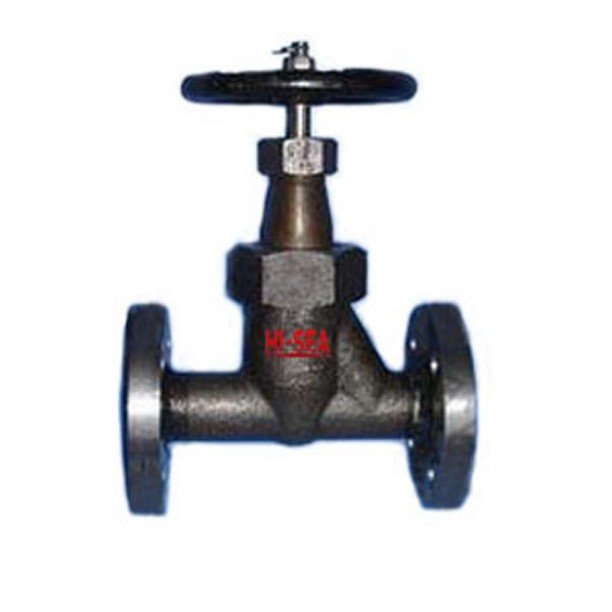

Marine Forged Steel Globe Valve JIS F7336 30k

Marine Forged Steel Globe Valve JIS F7336 30k:

1.Test standard: JIS F7400.

2.End standard: JIS B2220.

3.End type: F/S/U.

4.Pressure: 30k.

5.DN:

  • F type: 15mm-25mm;
  • S type: 6mm and 10mm;
  • U type: 6mm and 10mm.

6.Main material:

  • Body/Bonnet: SF45;
  • Seat: SUS403;
  • Stem: SUS403;
  • Disc: SUS402JI.

7.Application:Oil piping,water ping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the follow rate.

9.Specification of Marine Forged Steel Globe Valve JIS F7336 30k:

Marine Forged Steel Globe Valve JIS F7336 30k

Marine Forged Steel Globe Valve JIS F7336 30k(F type)

DN

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

15

150

115

80

4x19

5.60

20

170

120

85

4x19

7.09

25

200

130

95

4x19

9.46

Marine Forged Steel Globe Valve JIS F7336 30k(S type)

DN/mm

L1/mm

L2/mm

L3/mm

K/mm

D3/mm

B2/mm

Weight/kg

6

42

38

51

12

M20x1.5

30

1.26

10

51

45

63

16

M24x2.0

41

1.80

Marine Forged Steel Globe Valve JIS F7336 30k(U type)

DN/mm

L/mm

L1/mm

B2

Weight/kg

6

84

102

30

1.30

10

102

126

41

1.94

10.Drawing of Marine Forged Steel Globe Valve JIS F7336 30k:

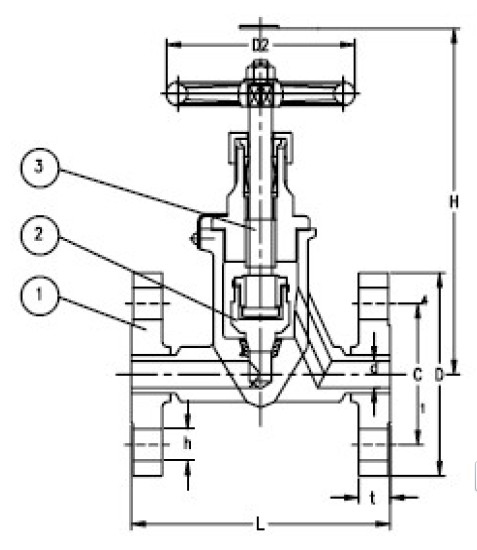

F type

Marine Forged Steel Globe Valve JIS F7336 30k

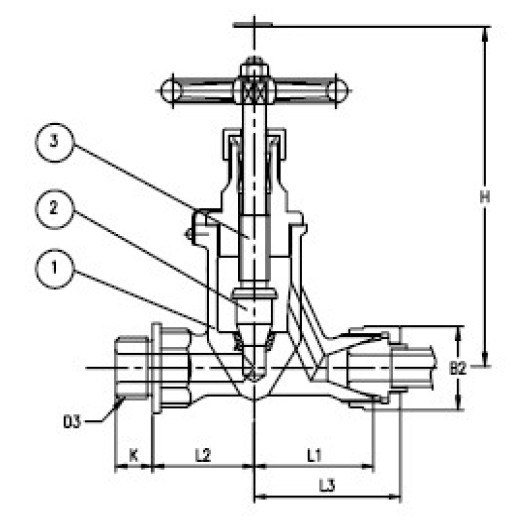

S type

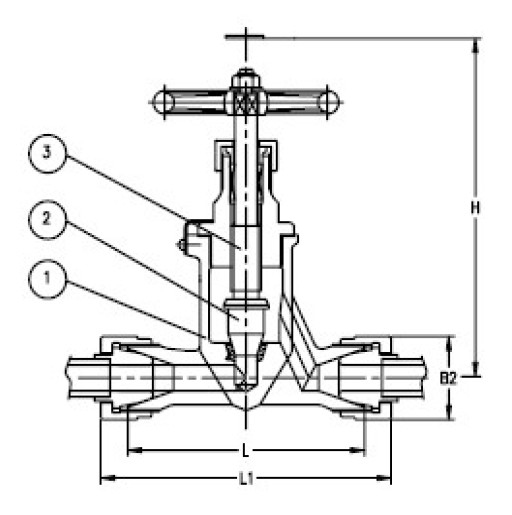

Marine Forged Steel Globe Valve JIS F7336 30k

U type

Marine Forged Steel Globe Valve JIS F7336 30k
