Marine Cast Steel Gate Valve JIS F7363C/7366

[Search Related Products]

7366

Marine cast steel gate valve JIS F7363C/7366 5K/10k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k/10k.

5.DN:

  • 5k:50mm-600mm;
  • 10k:50mm-400mm.

6.Main material:

  • Body/Bonnet:ZG230-450;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty.

9.Specification of marine cast steel gate valve JIS F7363C/7366 5k/10k:

Marine cast steel gate valve JIS F7363C 5K

Size

L

Flange diam. (D)

Pitch (C)

Hole (nxd)

t

H

Weight

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(kgs)

50

180

130

105

4x¦µ15

16

285

13.5

65

190

155

130

4x¦µ15

18

330

19.0

80

200

180

145

4x¦µ19

18

380

24.2

100

230

200

165

8x¦µ19

20

430

35.3

125

250

235

200

8x¦µ19

20

495

48.1

150

270

265

230

8x¦µ19

22

560

65.3

200

290

320

280

8x¦µ23

24

680

103.0

250

330

385

345

12x¦µ23

26

800

164.0

300

370

430

390

12x¦µ23

28

920

236.0

350

410

480

435

12x¦µ25

30

1000

307.0

400

470

540

495

16x¦µ25

30

1100

405.0

450

500

605

555

16x¦µ25

30

1420

556.0

500

550

655

600

20x¦µ25

32

1500

700.0

550

600

720

665

20x¦µ27

32

1650

878.0

600

660

770

715

20x¦µ27

32

1680

1120.0

Marine cast steel gate valve JIS F7366 10K :

Size L Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
50 200 155 120 4x¦µ19 16 300 17.1
65 220 175 140 4x¦µ19 18 350 26.5
80 230 185 150 8x¦µ19 18 400 31.50
100 250 210 175 8x¦µ19 18 450 44.9
125 270 250 210 8x¦µ23 20 520 63.2
150 290 280 240 8x¦µ23 22 580 82.3
200 310 330 290 12x¦µ23 22 700 130.0
250 340 400 355 12x¦µ25 24 840 203.0
300 380 445 400 16x¦µ25 24 960 291.0
350 420 490 445 16x¦µ25 26 1050 368.0
400 480 560 510 16x¦µ27 28 1150 507.0

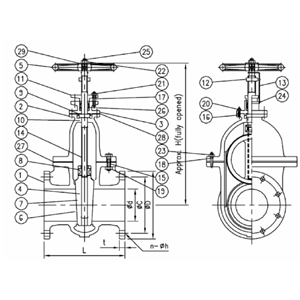

10.Drawing of marine cast steel gate valve JIS F7363C/7366 5k/10k:

11. Marine cast steel gate valve JIS F7363C/7366 5k/10k factory:
