Marine Cast Iron SDNR Angle Valve JIS F7378 16K

[Search Related Products]

F7378

Marine Cast Iron Screw Down Check Angle Valve JIS F7378 16K :

1.Test standard:JISF7400.
2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:50mm-200mm.

6.Main material:

  • Body/Bonnet:HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Iron Screw Down Check Angle Valve JIS F7378 16K :

Size L1 Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
50 120 155 120 8x¦µ19 20 255 18.0
65 130 175 140 8x¦µ19 22 270 25.0
80 150 200 160 8x¦µ23 24 295 35.7
100 170 225 185 8x¦µ23 26 330 49.2
125 200 270 225 8x¦µ25 26 390 76.1
150 225 305 260 12x¦µ25 28 435 103.0
200 250 350 305 12x¦µ25 30 540 155.0

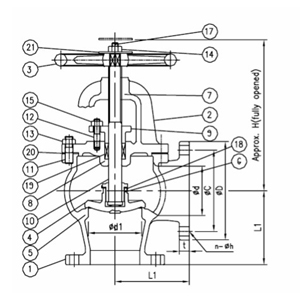

10.Drawing of Marine Cast Iron Screw Down Check Angle Valve JIS F7378 16K :
