Marine Cast Steel Angle Storm Valve JIS F3060R 10k

[Search Related Products]

Angle Storm Valve F3060R 10k

Marine Cast Steel Angle Storm Valve JIS F3060R 10k;

1.Test standard:JISF7400.

2.End standard:JISB2210.

3.End type:Flange.

4.PN:10k.

5.DN:50mm-200mm.

6.Main material:

  • Body/Bonnet:ZG230-450;
  • Seat:SS410/BC6;
  • Stem:SS410/BC6;
  • Disc:SS410/BC6.

7.Application:Seawater and freshwater piping.

8.Function:Such valves are used for discharging seawater or freshwater and preventing refluence.

9. Specification of Marine Cast Steel Angle Storm Valve JIS F3060R 10k:

IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
754251

F3060R

10k

Angle

50 170 155 120 4X¦µ19 15.29
754252 65 200 175 140 4X¦µ19 22.11
754253 80 220 185 150 8X¦µ19 26.51
754254 100 250 210 175 8x¦µ19 38.72
754255 125 270 250 210 8X¦µ23 57.97
754256 150 310 280 240 8x¦µ23 69.52
754257 200 400 330 290 12X¦µ23 92.07

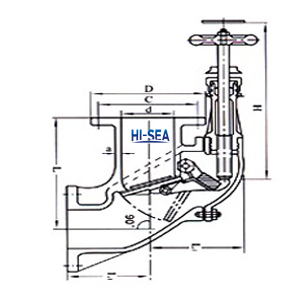

10.Drawing of Marine Cast Steel Angle Storm Valve JIS F3060R 10k;

F3060R

11.Certificate available:

Certificate01
