Marine Cast Iron Angle Globe Valve JIS F7306 5k

[Search Related Products]

Angle Globe Valve F7306 5k

Marine Cast Iron Angle Globe Valve JIS F7306 5k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-400mm.

6.Main material:

  • Body/Bonnet:FC-HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Iron Angle Globe Valve JIS F7306 5k:

IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
750216

F7306

5k

Globe

50 100 130 105 4x¦µ15 12.90
750217 65 115 155 130 4x¦µ15 18.20
750218 80 130 180 145 4x¦µ19 23.40
750219 100 150 200 165 8x¦µ19 33.70
750220 125 170 235 200 8x¦µ19 46.20
750221 150 190 265 230 8x¦µ19 63.40
750222 200 220 320 280 8x¦µ23 105
750223 250 275 385 345 12x¦µ23 176
750224 300 310 430 390 12x¦µ23 243
750225 350 360 480 435 12x¦µ25 335
750226 400 395 540 495 16x¦µ25 459

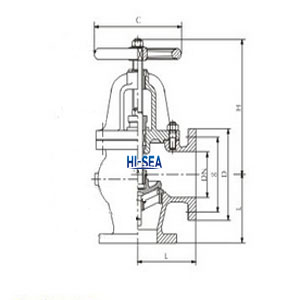

10.Drawing of Marine Cast Iron Angle Globe Valve JIS F7306 5k:

Angle Globe Valve F7303 5k

11.Certificate available:

Certificate
