Marine Cast Iron Angle Globe Valve JIS F7310 16k

[Search Related Products]

Angle Globe Valve F7310 16k

Marine Cast Iron Angle Globe Valve JIS F7310 16k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:50mm-200mm.

6.Main material:

  • Body/Bonnet:HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the fllow rate.

9.Specification of Marine Cast Iron Angle Globe Valve JIS F7310 16k:

IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) weight/kg
750271

F7310

16k

Globe

50 120 155 120 8x¦µ19 18.00
750272 65 130 175 140 8x¦µ19 25.00
750273 80 150 200 160 8x¦µ23 35.70
750274 100 170 225 185 8x¦µ23 49.20
750275 125 200 270 225 8x¦µ25 76.10
750276 150 225 305 260 12x¦µ25 103.00
750277 200 250 350 305 12x¦µ25 155.00

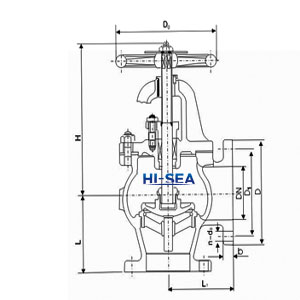

10.Drawing of Marine Cast Iron Angle Globe Valve JIS F7310 16k:

F7310

11.Certificate available:

Certificate
