Marine Cast Bronze Angle Globe Valve JIS F7304 16k

[Search Related Products]

7304

Marine Cast Bronze Angle Globe Valve JIS F7304 16k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6/FCD450.
  • Seat:BC6/SS410.
  • Stem:H62/SS410.
  • Disc:BC6/SS410.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Bronze Angle Globe Valve JIS F7304 16k:

IMPA Type DN Face to face/L(mm) Flange diam. Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
750151

F7304

16k

Globe

15 70 95 70 4x15 2.73
750152 20 75 100 75 4x15 3.65
750153 25 85 125 90 4x19 5.16
750154 32 95 135 100 4x19 6.72
750155 40 100 140 105 4x19 8.13

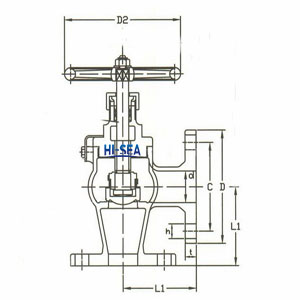

10.Drawing of Marine Cast Bronze Angle Globe Valve JIS F7304 16k:

F7307

11.Certificate avalable:

Certificate
