Marine Bronze Globe Valve JIS F7388 20k

[Search Related Products]

7388

Marine Bronze Globe Valve JIS F7388 20k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:S/U.

4.PN:20k.

5.DN:6mm and 10mm.

6.Main material:

  • Body:BC6;
  • Stem:SUS403;
  • Disc:SUS403.

7.Application:Oil piping,water piping and gas piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Bronze Globe Valve JIS F7388 20k:

'S'type

DN/mm

Pipe out diam.

Thread/mm

L1/mm

Weight/kg

Copper

Steel

6

8.1

10.5

M20X1.5

32

0.81

10

15

17.3

M24x2.0

36

1.22

'U'type

DN/MM

Pipe out diam.

L/mm

L1/mm

Weight/kg

Copper

Steel

6

8.1

10.5

64

82

0.85

10

15

17.3

72

96

1.37

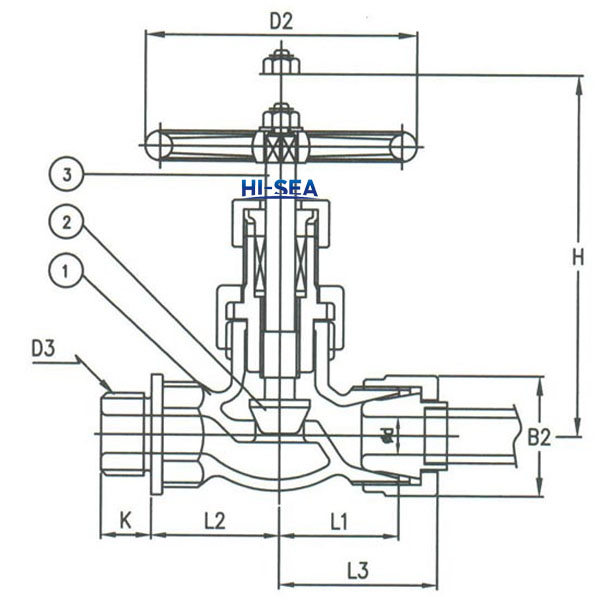

10.Drawing of Marine Bronze Globe Valve JIS F7388 20k:

7388cad

11.Certificate available:

Certificate01
