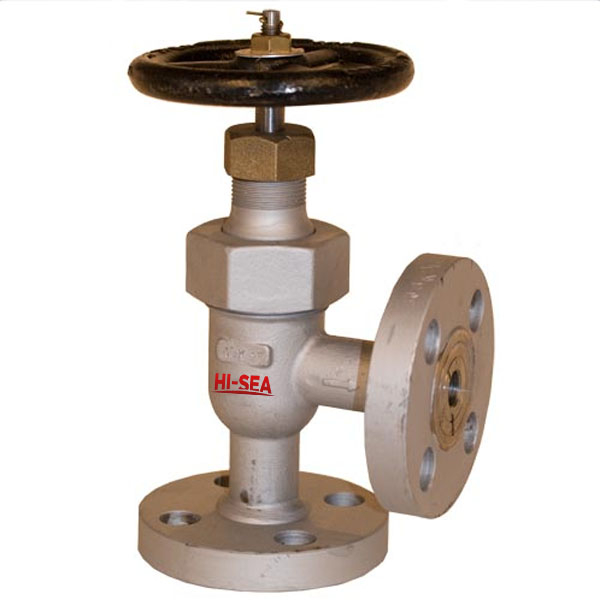

Marine Forged Steel Angle Valve JIS F7330 40k:

1Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:F/S.

4.PN:40k.

5.DN:

  • 'F'type:15mm-25mm;
  • 'S'type:6mm and 10mm

6.Main material:

  • Body:SC49;
  • Stem:SUS403;
  • Disc:SUS402J1.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Forged Steel Angle Valve JIS F7330 40k:

Marine Forged Steel Angle Valve JIS F7330 40k "F"type

DN/mm

Face to face /L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

15

90

115

80

4x19

5.2

20

95

120

85

4x19

6.6

25

100

130

95

4x19

8.5

Marine Forged Steel Angle Valve JIS F7330 40k Stype

DN/mm

L1/mm

L2/mm

K/mm

B2/mm

D3/mm

Weight/kg

6

51

38

12

30

M20x1.5

1.6

10

51

45

16

41

M24x2.0

1.9

10.Drawing of Marine Forged Steel Angle Valve JIS F7330 40k:

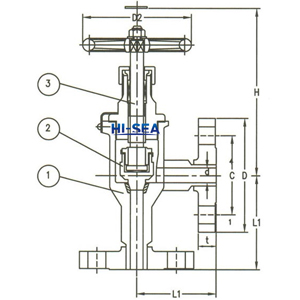

'F'type

cad7330

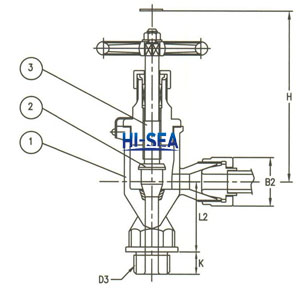

'S'type

7330cad
