Marine Liquidometer Self-closing Valve CB/T3265-1994

Marine Liquidometer Self-closing Valve CB/T3265-1994:

1.Design standard:CB/T3265-1994.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.1Mpa.

5.DN:25mm.

6.Main material:

  • Body/Bonnet:Cast tin bronze;
  • Stem:Cast aluminum bronze;
  • Disc:Cast aluminum bronze.

7.Application:Fuel oil and lubricant oil piping.

8.Fundamental dimensions of Marine Liquidometer Self-closing Valve CB/T3265-1994:

Type

Flange connection dimension

Bolt

Weight

D/mm

D1/mm

D2/mm

d0 /mm

b/mm

n

Th.

kg

ZĄ˘Y

105

73

56

13

13

4

M12

3.9

ZSĄ˘YS

100

75

60

11

14

4

M10

4.0

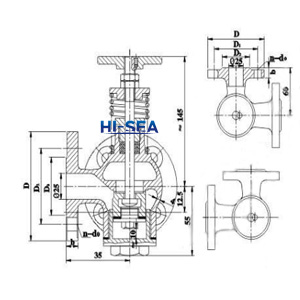

9.Drawing of Marine Liquidometer Self-closing Valve CB/T3265-1994:

Marine Liquidometer Self-closing Valve CB/T3265-1994

10.Certificate available:

Marine Liquidometer Self-closing Valve CB/T3265-1994
