Marine Flanged Cast Iron Stop Valve CB/T4010-2005

Marine Flanged Cast Iron Stop Valve CB/T4010-2005:

1.Design standard:CB/T4010-2005.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:1.0Mpa.

5.DN:50mm-400mm.

6.Main material:

  • Body/Bonnet:HT200;
  • Seat:BC6;
  • Stem:Brass;
  • Disc:BC6.

7.Application:Fresh water,oil and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Fundamental dimensions of Marine Flanged Cast Iron Stop Valve CB/T4010-2005:

DN

Flange connection dimension

Height

Structure length

H/mm

L/mm

mm

D/mm

C/mm

n

d/mm

AJ

BJ

AJ

BJ

50

155

120

4

19

285

255

220

120

65

175

140

4

19

310

270

270

130

80

185

150

8

19

320

275

300

140

100

210

175

8

19

370

315

350

160

125

250

210

8

23

420

360

420

180

150

280

240

8

23

470

405

490

205

200

330

290

12

23

555

475

570

230

250

400

355

12

25

635

570

740

290

300

445

400

16

25

770

645

840

320

350

490

445

16

25

710

360

400

560

510

16

27

790

420

10.Drawing of Marine Flanged Cast Iron Stop Valve CB/T4010-2005:

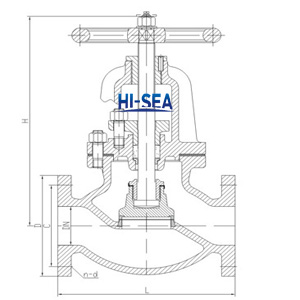

Type AJ:

Marine Flanged Cast Iron Stop Valve CB/T4010-2005

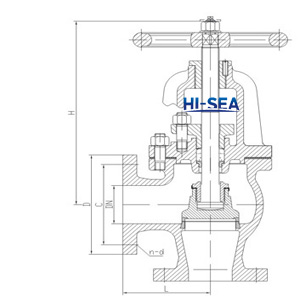

Type BJ:

Marine Flanged Cast Iron Stop Valve CB/T4010-2005

11.Certificate available:

Marine Flanged Cast Iron Stop Valve CB/T4010-2005
