Marine Cast Iron Gate Valve JIS F7364 10k

[Search Related Products]

7364

Marine Cast Iron Gate Valve JIS F7364 10K:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:10k.

5.DN:50mm-350mm.

6.Main material:

  • Body/Bonnet:HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty.

9.Specification of Marine Cast Iron Gate Valve JIS F7364 10K:

IMPA Type DN/(mm) Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/(kg)
750821

F7364

10k

Gate

50 200 155 120 4x¦µ19 19.40
750822 65 220 175 140 4x¦µ19 27.60
750823 80 230 185 150 8x¦µ19 33.00
750824 100 250 210 175 8x¦µ19 45.80
750825 125 270 250 210 8x¦µ23 65.90
750826 150 290 280 240 8x¦µ23 86.00
750827 200 320 330 290 12x¦µ23 136.00
750828 250 380 400 355 12x¦µ25 230.00
750829 300 440 445 400 16x¦µ25 331.00
750830 350 500 490 445 16x¦µ25 433.00
750831 400 590 560 510 16x¦µ27 597.00

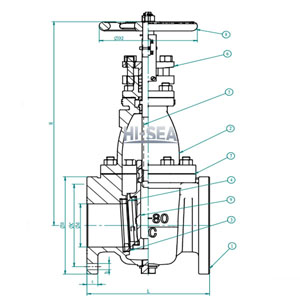

10.Drawing of Marine Cast Iron Gate Valve JIS F7364 10K:

7464cad

11.Marine Cast Iron Gate Valve JIS F7364 10K factory:

7366factory
