Marine Cast Iron Straight Globe Valve JIS F7309 16k

[Search Related Products]

F7309

Marine Cast Iron Straight Globe Valve JIS F7309 16k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:50mm-200mm.

6.Main material

  • Body/Bonnet:HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specificaton of Marine Cast Iron Straight Globe Valve JIS F7309 16k:

IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
750261

F7309

16k

Globe

50 220 155 120 8x19 19.60
750262 65 270 175 140 8x19 28.30
750263 80 300 200 160 8x23 40.40
750264 100 350 225 185 8x23 56.90
750265 125 430 270 225 8x25 89.50
750266 150 500 305 260 12x25 123.00
750267 200 570 350 305 12x25 188.00

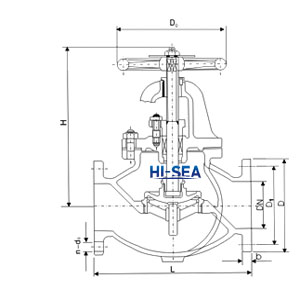

10.Drawing of Marine Cast Iron Straight Globe Valve JIS F7309 16k:

F7309

11.Certificate available:

Certificate
