Marine Cast Bronze Union Bonnet type Globe Valve JIS F7348 16k

[Search Related Products]

7348

Marine Cast Bronze Union Bonnet type Globe Valve JIS F7348 16k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BRASS;
  • Disc:BC6.

7.Application:Seawater piping and fresh water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Bronze Union Bonnet type Globe Valve JIS F7348 16k:

DN/mm

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

15

110

95

70

4x¦µ15

20

120

100

75

4x¦µ15

25

130

125

90

4x¦µ19

32

160

135

100

4x¦µ19

40

180

140

105

4x¦µ19

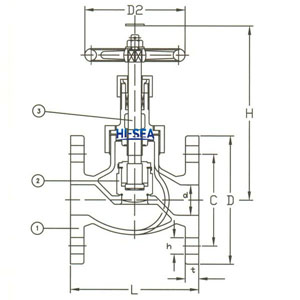

10.Drawing of Marine Cast Bronze Union Bonnet type Globe Valve JIS F7348 16k:

7348cad

11.Certificate available:

Certificate01
