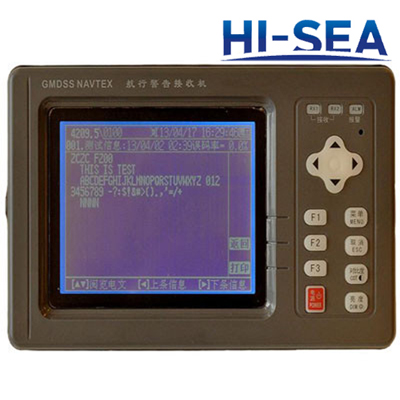

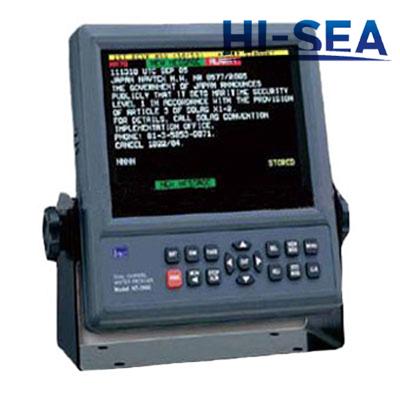

NAVTEX

NAVTEX

Specifications:

1. Receiving Frequency: 518 KHz, 490 KHz and 4209.5 KHz

2. Display screen: 8.0-inch TFT color LCD, LED backlight, displaying 20 rows of information and each line showing 47 characters.

3. Storage: 200 messages (500 characters one message) and 50 protective messages

4. Antenna: 1.2m

5. External interface: INS interface(RS-422), print output interface(RS-232C), 8 feet I/O data interface

6. Power supply: DC24V(standard: 11-40V), 11W

7. Dimensions(L mm× W mm× H mm): 224×224×102, 260×243×102(with holder)

8. Weight: 3.3kg (with holder)

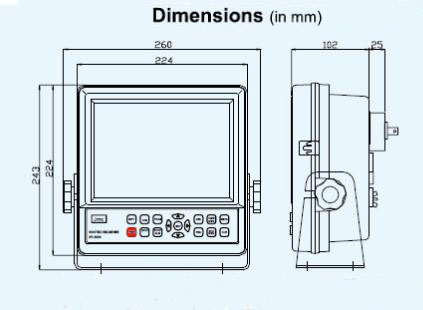

Dimension picture:

Dimensions of NAVTEX

More products:

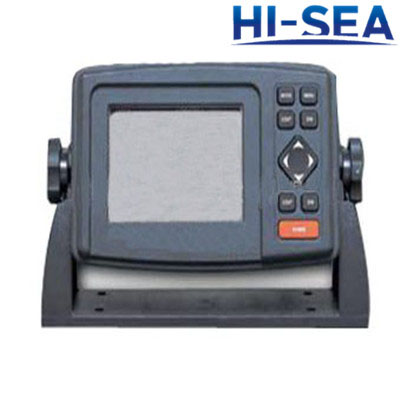

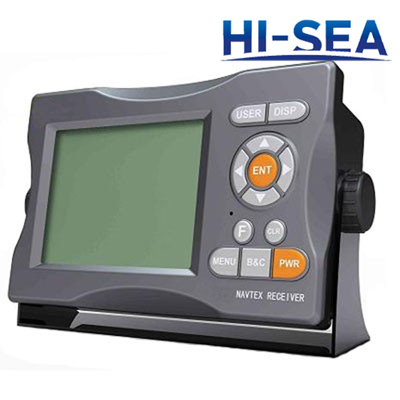

Navigational Telex

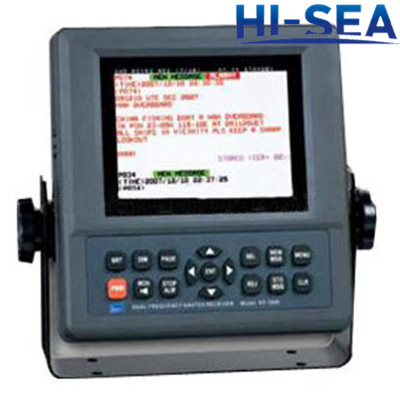

Marine Navigational Telex
