Marine Two Way VHF Radio Telephone

Marine Two Way VHF Radio Telephone

This marine VFH radio telephone is the VHF voice terminal equipment of a ship, mainly used for short-range communication at sea, such as the communication of bridge-to-bridge and bridge-to- rescue site; and it use VHF band when communicating.

Features:

1. Carefully designing circuit and process, using aluminum alloy shell, superior anti-jamming capability

2. 100% waterproof and good heat dissipation enabling the radio telephone to work in rugged environment

3. Dual-band and tri-band unattended function

4. Single key converting to international communication channel 16 or channel 9

5. 88 dedicated channels

6. All the American, international and Canada channels, 10 weather channels

7. Prior quick scanning

8. CCS approved

Technical Specification:

Overall index

Receiving signal index

Frequency range: 156.025-157.425MHz

Sensibility: 0.4V(12dB SINAD)

Modulation type: FM(16K0G3E)

Squelch sensitivity: 0.25V

Receiving system: super-heterodyne structure with twice conversions

Deep squelch blocking threshold: 5KHz

Frequency tolerance: 10ppm (-20 to +60) ppm

Adjacent channel selectivity: 65dB

Working voltage: DC6.4V

Intermodulation rejection: 58dB

Antenna impedance: 50

Spurious response: 65dB

Dimension: W(52)H(145)D(32)mm

Audio output power: 0.5W(8)

Net weight: 200g (2%)

Audio distortion: 7%

Launching index

Performance

Output power: 2W (Hi)or 1W(Lo)

Dual-band and tri-band unattended

Modulation limiting: ܡ5KHz

All the American, international and Canada channels, 10 weather channels

Modulation sensitivity: 20mV10mV

Single key converting to international communication channel 16 or channel 9

Audio distortion: 7%

88 dedicated channels

Stray component: -53dB

Prior quick scanning

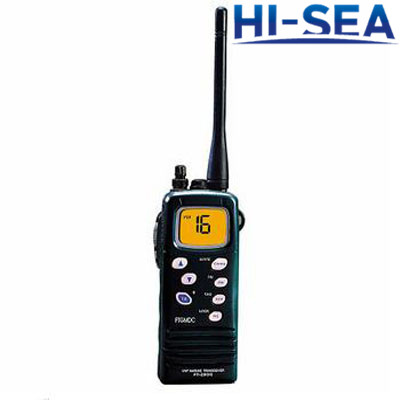

Product image:
