10.4-inch TFT LCD Class-B Marine AIS

10.4-inch TFT LCD Class-B Marine AIS

Features:

1. Comply with IMO MSC 74(69)annex3 A.694, ITU-R M.137-3 and IEC62287-1, IEC61993-2, IEC66945

2. AIS target approaching, sound and light alarm function

3. Compatible AIS marine Class A and fisheries Class B

4. Provided AIS target ship°Įs static and dynamic information

5. Target ship information display function

6. 10.4-inch TFT true color LCD display

7. GPS navigation function


Technical specifications:

Main unit

1. RF unit: 1 transmitter and 2 receivers

2. Frequency range: 156.025-162.025MHz

3. Channel spacing: 25KHz

4. Modulation method: GMSK9600pts

5. Frequency tolerance: °ņ 1000Hz

6. Display screen: 10.4-inch TFT true color LCD

7. Power supply: DC12V-15V

8. Operating temperature: -15 °ś ~ +55 °ś

9. Dimensions: 325 (W) x 235 (H) x 135 (D) mm

AIS transmitter section

1. Carrier power: 33dBm °ņ 1.5dB

2. Modulation spectrum: £ľ-25dBw , £ľ-60dBw

3. Modulation accuracy: £ľ3400Hz£®Bit 0,1£©, 2400Hz°ņ480Hz£®Bit2,3£©, 2400Hz°ņ240Hz(Bit 4-199 or 00001111 Bit format), 1740Hz°ņ175Hz£®0101 Bit format£©

4. Spurious emission: -36dBm£®9KHz-1GHz£©, -30dBm£®1GHz-4GHz£©

AIS receiver section

1. Reference sensitivity: -107dBm (package error rate °‹ 20%)

2. High input tolerance: -77dBm (package error rate °‹ 2%)

3. Co-channel interference: 10dB£®package error rate°‹20%£©

4. Adjacent channel selectivity: 70dB£®package error rate°‹20%£©

5. Spurious response interference: 70dB£®package error rate°‹20%£©

6. Inter-modulation response interference: 65dB£®package error rate°‹20%£©

Note: Specifications are subject to change without notice.

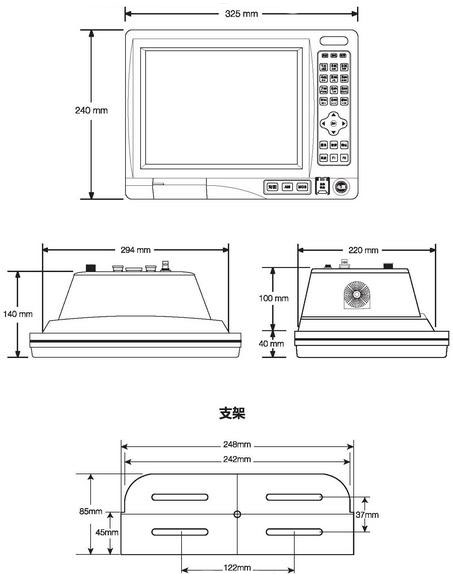

Dimensions:

10.4-inch TFT LCD Class-B Marine AIS

Dimensions of 10.4-inch TFT LCD Class-B Marine AIS
