8-inch LCD Class-B Marine AIS Transponder

8-inch LCD Class-B Marine AIS Transponder

Product features:

1. Comply with IMO MSC 74(69)annex3 A.694, ITU-R M.137-3 and IEC62287-1, IEC61993-2, IEC66945

2. AIS target approaching, sound and light alarm function

3. Compatible AIS marine Class A and Class B

4. Provided AIS target ship°Įs static and dynamic information

5. Target ship information display function

6. 8.0-inch TFT true color LCD display

7. GPS navigation function


Technical specifications:

Main unit

1. RF unit: 1 transmitter and 2 receivers

2. Frequency range: 156.025-162.025MHz

3. Channel spacing: 25KHz

4. Modulation method: GMSK9600Bps, FSK1200Bps,

5. Frequency tolerance: °ņ 500Hz

6. Display screen: TFT true color 8-inch LCD screen

7. Positioning time: <120s

8. Positioning accuracy: <10 m

9. Power supply: DC12V °ņ 20% (external power converter input DC9-40V)

10. Operating temperature: -15 °ś ~ +55 °ś

11. Dimensions: 270 (W) x 200 (H) x 115 (D) mm

AIS transmitter section

1. Carrier power: 33dBm °ņ 1.5dB

2. Modulation spectrum: £ľ-25dBw , £ľ-60dBw

3. Modulation accuracy: £ľ3Hz°ņ480Hz£®Bit 2,3£©, 2400Hz°ņ240Hz£®Bit 4-199 Or 00001111 Bit format£©, 1740Hz°ņ175Hz£®0101 Bit format£©

4. Spurious emission: °‹-36dBm£®9KHz-1GHz£©, °‹-30dBm£®1GHz-4GHz£©

AIS receiver section

1. Reference sensitivity: °‹-107dBm (package error rate °‹ 20%)

2. Strong signal reception ability: -77dBm (package error rate °‹ 2%) , -7dBm£®Package error rate£ľ10%£©

3. Co-channel interference: £ĺ10dB£®package error rate°‹20%£©

4. Adjacent channel selectivity: £ĺ70dB£®package error rate°‹20%£©

5. Spurious response interference: £ĺ70dB£®package error rate°‹20%£©

6. Inter-modulation response interference: £ĺ65dB£®package error rate°‹20%£©

7. Blocking: > 86dB (package error rate °‹ 20%)

8. Spurious emission: °‹-57dBm£®9KHz~1GHz£©°‹-47dBm£®1GHz~4GHz£©

Note: Specifications are subject to change without notice.

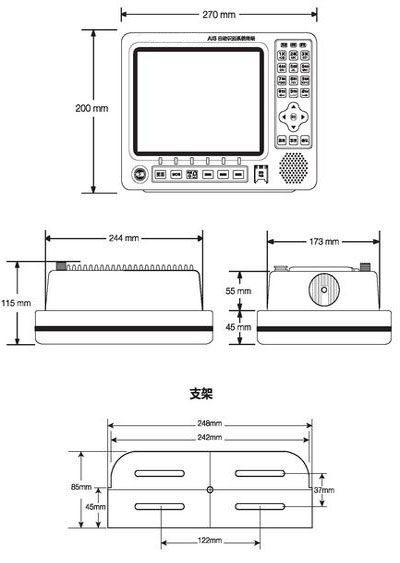

Dimensions:

8-inch LCD Class-B Marine AIS Transponder

Dimensions of 8-inch LCD Class-B Marine AIS Transponder
