Distress Radio Beacon

Distress Radio Beacon

This emergency position indicating radio beacon meets the demands of both commercial mariners and recreational boaters. With a built-in high accuracy GPS, this compact and stylish unit is available as a standard 406 MHz EPIRB for enhancing position location. It designed to operate with the COSPAS-SARSAT international search and rescue system. Once removed from its mounting bracket, the unit can be activated automatically by immersion in water or manually by following the activation instructions printed on the unit.

Features:

1. GMDSS and IMO latest requirements approved

2. Non hazardous battery for safe and easy transportation

3. High brightness LED flashing locator lights

4. Integrated 12 channels GPS

5. Comprehensive diagnostic and self-test facilities

6. Once activated, transmitting for a minimum 48 hours

7. 5 years warranty

8. 6 years battery life

9. Water- resistant to 10 meter

Specification:

1. Main data:

Operating temperature range: -20 °C ~ +55 °C

Storage temperature range: -30 °C ~ +70 °C

Weight: 657g, 2130g (with self-release bracket)

Operation hours: -20℃48 hours

2. Satellite transmitter:

Output frequency: 406.028MHz

Output power: 5W (37dBm) ± 2dB

3. Find bits transmitter:

Output frequency: 121.5MHz ± 3 KHz

Output power: 50mW±3dB

Vertical Whip Antenna

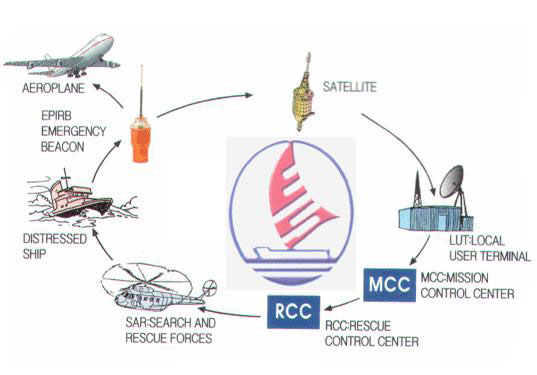

COSPAS-SARSAT System:

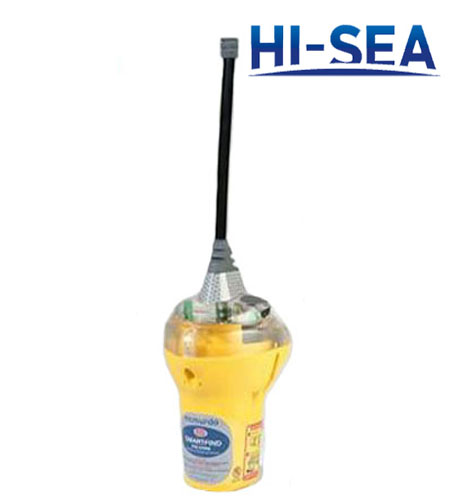

product picture:

Emergency Beacon
