Steel Navigation Buoy

Steel Navigation Buoy

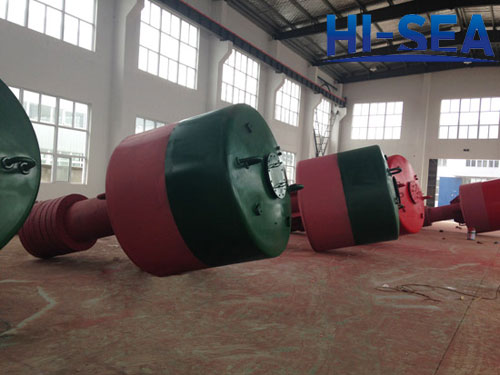

Steel navigation buoy is widely used as sea lanes marker, inland river navigation mark, sea oil platform signs and offshore air monitoring and hydro geological monitoring system etc.. The diameter of steel navigation buoy is various. It can be 0.6m, 1.2m, 1.5m, 1.8m, 2.4m, 3.0m etc.. We can supply customized buoys accroding to our customers special requirements.

All our buoys are in line with the standards of International Association of Lighthouse Authorities.We can also supply the certificate of China Classification Society. If you have any question about our products, please feel free to contact us.

Basic Parameters of Steel Navigation Buoy

Specifications

Buoy Diameter(m)

Buoy Draft(m)

Freeboard Height(m)

Lamp Focal Plane Height(m)

Floating Material Thickness(mm)

Applicable Anchor Chains(mm)

Applicable Sinker(t)

Coating Thickness of Dry Film(m)

0.6

0.6

0.5

0.3

1.5

2.5

11

0.2

1.2

1.2

1.0

0.5

2.0

4.0

17.5

0.5~1

1.5

1.5

1.2

0.6

2.5

5.0

22

1~2

1.8

1.8

2.5(Deep Water)

1.0(Shallow Water)

0.7

3.0

8.0

28

2~3

2.4

2.4

3.0(Deep Water)

1.5(Shallow Water)

0.9

4.5

8.0

34

3~6

3.0

3.0

3.6

1.0

6.0

10

38

5~8

Note 1: buoy draft means the normal draft height of buoy after it being set up.

Note 2: Freeboard Height means the height of the waterline to the floating body under normal conditions after the buoy being set up.

Note 3: Lamp focal plane height means the height of waterline to the lamp focal plane after the buoy being set up.

Working Characteristics of Steel Navigation Buoy

Specificaiton

Swing Period(s)

Max. Swing Angle()

Day Mark Range of Visibility(n mile)

Light Range(n mile)

Radar Detection Range(n mile)

Anchorage Depth(m)

0.6

3~5

15

0.5

0.5

0.5

2~10

1.2

3~5

15

1

1

1

3~15

1.5

3~5

15

1.5

1.5

1.5

4~20

1.8

3~5

15

2

2

2

6~30

2.4

3~5

15

3

3

3

10~50

3.0

3~5

15

4

4

4

15~60

Steel Navigation Buoy

Steel Navigation Buoy
