Steel Fishery Buoy

[Search Related Products]

Steel Fishery Buoy

Steel Fishery Buoy

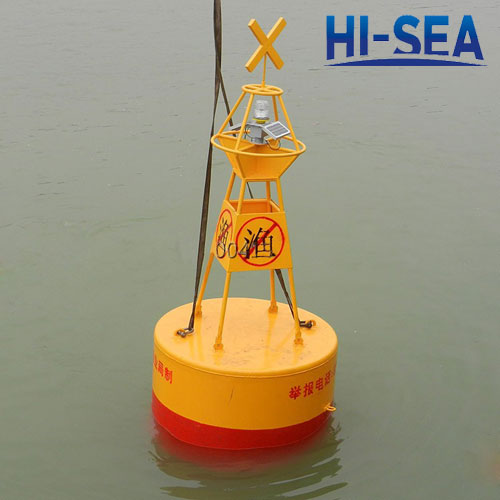

Fishery buoy is a special landmark at sea, widely used in aquacluture, marine protected areas, water fishing areas etc.. The landmark is produced in accordance with the standard design. It has yellow buoy body, topmark and navigation light.

During the day, the yellow fish signs and the topmark is a warning to the ships; during the evening, yellow flashing navigation light is a warning to the ships. The fishery landmark limits the boundaries for fishing, marking the users fishery scope and aslo providing navigation indications for other ships. It effectively avoid the breaking through of other ships and causing unnecessary losses.

Material of Fishery Buoy: Glass fiber reinforced plastic(FRP), Steel plate

Constructure: The buoy body is pillar buoy and it is composed of topmark, a bracket, buoy body, battery, tail pipe, balance iron and so on. On the bracket, it can be equipped with lamp device, radar reflector, solor panels etc.. Below the buoy, it is connected with anchoring equipment.

Size: 1.2m, 1.4m, 1.5m, 2.4m or other sizes we can customize for you

Certificate: CCS/IALA

Features of Fishery Buoy

1. Welding proess is in accordance with the relevant standards of China Classification Society

2. Pass the air tightness test, never leak

3. Simple installation, no need professionl intallation team

4. Long service life

5. Excellent anti-impact and anti-sinking performance

Main Technical Parameters of Steel Fishery Landmark

Diamater(m)

Shape

Color

Material

Plate Thickness(mm)

Light Distance(n mile)

Character

Light Flashing Rhythm

Luminescent Material

Lamp Control Principle

Battery Voltage(V)

Battery for option

Solar Panel(W)

Charging Principle

Anchor Chain Configuration

1.2/1.5

Doliform

Yellow

Ship Steel Plate

4

3.5

Yellow Flashes, every 12 seconds

Morse Code O

Long Service Life LED

Singlechip

12

12V/7AH

5

13.5V Automatic Protection

Deep/ Shallow Depth Configuration

Main Technical Parameters of Fishery Landmark

Diamater(m)

1.2/1.5

1.2/1.4

Shape

Doliform

Ball

Color

Yellow

Yellow

Material

Ship Steel Plate

FRP

Plate Thickness(mm)

4

6

Light Distance(n mile)

3.5

3.5

Character

Yellow Flashes, every 12 seconds

Yellow Flashes, every 12 seconds

Light Flashing Rhythm

Morse Code O

Morse Code O

Luminescent Material

Long Service Life LED

Long Service Life LED

Lamp Control Principle

Singlechip

Singlechip

Battery Voltage(V)

12

12

Optional Battery

12V/7AH

12V/7AH

Solar Panel(W)

5

5

Charging Principle

13.5V Automatic Protection

13.5V Automatic Protection

Anchor Chain Configuration

Deep/ Shallow Depth Configuration

Deep/ Shallow Depth Configuration

Steel Fishery Buoy

Marine Fishery Landmark
