Generator Set:

Chongqing Hi-sea Marine Equipment Import & Export Co., Ltd. located in the largest industrial city - Chongqing, China. We are the earliest professional manufacturer and exporter of Generator. Our company belongs to a productive factory's foreign trade department, owns advanced mechanical processing, assembling, mechanical, electrical, high-tech testing platform for 3KW-2000KW, and various microcomputer integrated test equipments. We have better service, lower price. We mainly supply gensets for telecommunication, electric power, ships, railway oil fields, express way and so on.

Main of Hi-sea Marine Generator Set is Cummins Series, Deutz Series, Volvo Series and so on. Power range is from 3KW - 2000KW, Which cover varied types for general and special users, including open type, soundproof type, trail type, containerized type and tower light, etc.

Our company has successfully passed ISO9001-2000 international quality system certification, China classification society (CCS shipping certificate) export goods license and the ministry of information industry licenses for etc. Rely on high quality product and the first-class service, the company has gradually recognized by the market, and has a huge customer base and good reputation.

We hope to cooperate with you and creat a brilliant career.

Generator Set:

Product Presentation

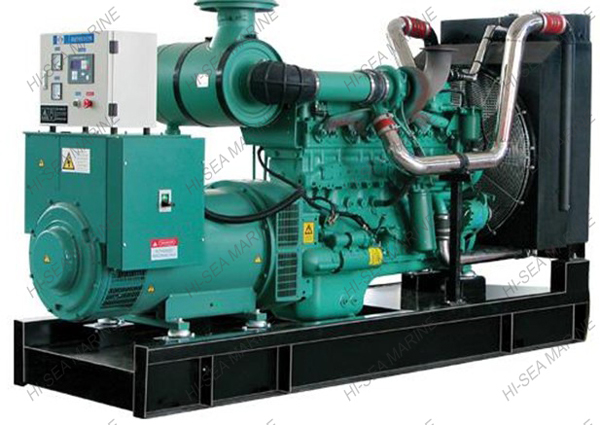

This products belong to Cummins Series Diesel Generator Sets, the brand name is Hi-sea. Output type: DC; AC Single Phase; AC Three Phase. Speed: 1500 rpm. Frequency: 50 Hz; Rated Power: 20-1100KW. Rated Voltage: 220/380V; 230/400V. Rated Current: 32A-2160A. Color: optional.


Technical Data


Model Number HS22C1 - HS1300C
Output Type DC, AC Single Phase, AC Three phase
Speed 1500 rpm
Frequency 50 Hz
Rated Power 20KW - 1300KW
Rated Voltage 220/380V, 230/400V
Color optional
Number of Cylinders 4 - 16
Enigine Brand Cummins
Engine Power 24KW - 1430KW
Bore X Stroke 102X120, 114X135, 140X152,159X159
Displacement 6.7L - 289L
Oil consumption 3.9g/kw*h - 50.3g/kw*h
Genset Weight 600 - 11000Kg



Generator set model

Generator set Power (KW)

Engine Model Engine Brand

Engine Power KW

Cylinder Bore Stroke mmmm

Displacement L

Oil consumption

g/kw*h

Generator set Weight Kg Generator set Size (mmmmmm)
Standby Prime
HS22C1 22 20 4B3.9-G1 Cummins 24 4 102120 6.7 3.9 600 18006801380
HS22C2 22 20 4B3.9-G2 Cummins 24 4 102120 6.7 3.9 600 18006801380
HS33C1 33 30 4BT3.9-G1 Cummins 36 4 102120 9.3 3.9 650 19506801380
HS33C2 33 30 4BT3.9-G2 Cummins 36 4 102120 9.3 3.9 650 19506801380
HS50C 50 40 4BTA3.9-G2 Cummins 55 4 102120 13.1 3.9 900 19507201380
HS88C1 88 75 6BT5.9-G1 Cummins 97 6 102120 22 5.9 1000 22608001500
HS88C2 88 75 6BT5.9-G2 Cummins 97 6 102120 22 5.9 1000 22608001500
HS110C 110 100 6BTA5.9-G2 Cummins 121 6 114135 27 5.9 1100 22608001500
HS120C 120 110 6BTAA5.9-G2 Cummins 132 6 114135 30 5.9 1450 22608001500
HS165C 165 150 6CTA8.3-G2 Cummins 182 6 114135 40 8.3 1500 22608001500
HS180C 180 160 6CTAA8.3-G2 Cummins 198 6 114135 45.4 8.3 1800 22608001500
HS220C1 220 200 6LTAA8.9-G2 Cummins 242 6 114135 53 8.3 1980 22608001500
HS220C2 220 200 NT855-GA Cummins 254 6 140152 53 14 3460 30009701670
HS250C 250 220 NTA855-G1A Cummins 291 6 140152 61 14 3550 30009701670
HS275C 275 250 NTA855-G1B Cummins 321 6 140152 69 14 3760 30009701670
HS300C 300 275 NTA855-G2A Cummins 343 6 140152 71 14 3760 30009701670
HS310C 310 280 NTA855-G4 Cummins 351 6 140152 76 14 3760 315010501700
HS330C 330 300 NTAA855-G7 Cummins 377 6 140152 84 14 3840 320019001800
HS340C 340 300 KTA19-G2 Cummins 369 6 159159 74 19 3900 394012501950
HS380C 380 350 NTAA855-G7A Cummins 407 6 140152 87 14 3900 320019001800
HS400C 400 350 KTA19-G3 Cummins 448 6 159159 96 19 3950 405012501950
HS440C 440 400 KTA19-G4 Cummins 504 6 159159 110 19 3950 405012502100
HS500C 500 420 KTAA19-G5 Cummins 555 6 159159 113 19 4500 410012502100
HS20C1 520 480 KTA19-G8 Cummins 570 6 159159 116 19 4500 410012502100
HS520C2 520 460 KTAA19-G6 Cummins 570 6 159159 130 19 4500 410012502100
HS550C 550 500 KTAA19-G6A Cummins 610 6 159159 133 19 4500 410012502100
HS600C 600 550 QSK19-G3 Cummins 660 6 159159 143 19 4500 410012502100
HS560C 560 500 KT38-G Cummins 615 12 159159 154 38 8060 445020002300
HS660C 660 600 KTA38-G2 Cummins 731 12 159159 154 38 8060 445020002300
HS710C 710 640 KTA38-G2B Cummins 781 12 159159 165 38 8060 445020002300
HS800C 800 728 KTA38-G2A Cummins 880 12 159159 188 38 8260 455020002300
HS880C 880 800 KTA38-G5 Cummins 970 12 159159 201 38 8260 465020002300
HS1000C 1000 900 KTA38-G9 Cummins 1190 12 159159 225 38 10000 500018002300
HS1100C 1100 1000 KTA50-G3 Cummins 1200 16 159159 254 503. 11000 550020002300
HS1300C 1300 1100 KTA50-G8 Cummins 1430 16 159159 289 50.3 11000 550020002300


Specification

1.Four valves for each cylinder, direct fuel injection, enhance the power and reduce fuel consumption.

2.Direct quench hardening of crankshaft and camshaft, with better reliability and longer service life.

3.Extremely low oil consumption Cummins's particular Ptfuel system with fixed timing and variable timing functions provides the engine with excellent fuel consumption ratio and emission performance, meeting requirements of different emission regulations.

4.Pulse exhaust pipe ensures good engine performance and ameliorates emission.

5.Good quality cast iron and specially designed value guide ensure sealing performance and durability.

6, Crankshaft designed with high strength and high precision of balance.

7, Advanced exhaust turbo charger and air-air inter cooling technology.

8, Good applicability to plateau, standard model suitable for an altitude of 1500m. Special plateau model may be used for an altitude of 4500m.
