Marine Aluminum Alloy Soundproof Window

Marine Aluminum Alloy Soundproof Window

This aluminum alloy window is used for cabin and meeting room in which need soundproof, heat insulation and keep temperature. This soundproof window is designed with clear view screen or without clear view screen and we can supply bolted or welded type for your option. It is approved by ZBU26003-89 standard and meets the requirements of CCS, DNV, BV, LR, KR, and NK certificates.

Drawing and specifications:

Marine Aluminum Alloy Soundproof Window

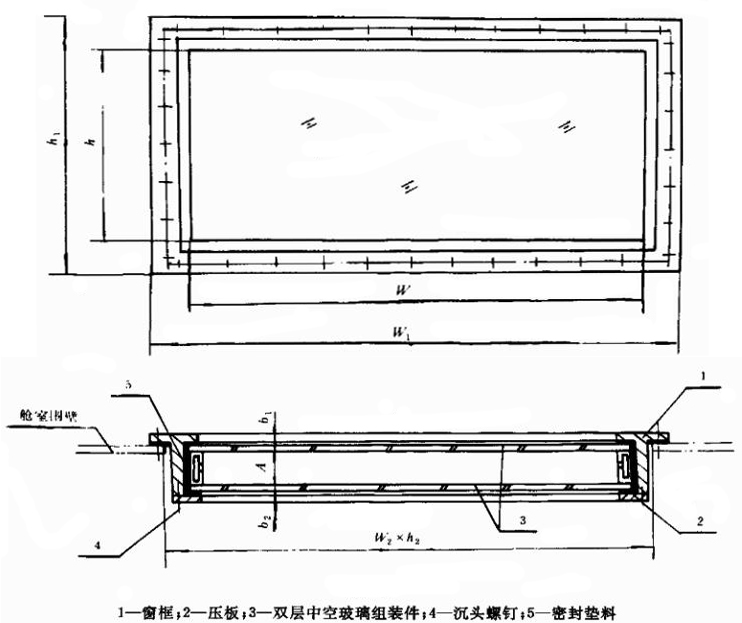

Drawing of Aluminum Alloy Soundproof Window for Ship

Code

Glass

G

Safety glass

P

Plate glass

J

Soundproof glass

C

Dark brown safety glass

Nominal size

wกมh

External size

W1กมh1

Size of opening

W2กมh2

Glass thickness

b1

Hollow

A

Glass thickness

b2

Soundproof

TL(dB)

Bolt

Weight

(kg)

QTY

DIA

300กม425

420กม545

352กม477

6

6

6

29

14

M12

10.0

300กม425

420กม545

352กม477

6

9

6

30.5

14

M12

10.0

355กม500

475กม620

407กม552

6

9

6

29

16

M12

15.6

355กม500

475กม620

407กม552

6

9

6

31.5

16

M12

16.2

400กม560

520กม680

452กม612

6

9

6

28.6

18

M12

18.2

400กม560

520กม680

452กม612

6

9

6

31.5

18

M12

18.6

450กม630

570กม750

502กม682

6

9

6

31.5

20

M12

21.2

500กม710

620กม830

552กม762

6

9

6

31

22

M12

25.3

900กม630

1020กม750

952กม682

6

12

6

30.5

26

M12

29.4

900กม630

1020กม750

952กม682

8

16

6

31.8

26

M12

33.2

900กม630

1020กม750

952กม682

8

24

6

35

26

M12

34.0

1000กม800

1120กม920

1052กม852

8

16

6

31

32

M12

45.9

1000กม800

1120กม920

1052กม852

8

24

6

35

32

M12

46.7

1200กม800

1320กม920

1252กม852

8

24

6

34

34

M12

54.4

1400กม800

1520กม920

1452กม852

8

24

6

33

36

M12

59.2

1600กม1000

1720กม1120

1652กม1052

8

24

6

32

40

M12

81.3

1800กม1200

1920กม1320

1852กม1252

8

24

6

30.52

44

M12

104.5

Identification example:

Aluminum soundproof window nominal size of 500กม710mm, A 9mm,safety glass------aluminum sound[roof window 500กม710กม9G ZBU26003-89

Product showing:

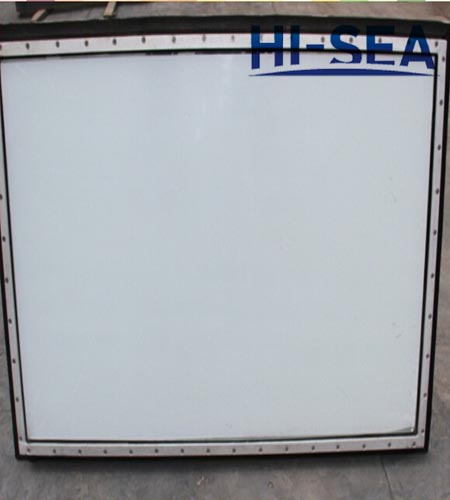

Marine Aluminum Alloy Soundproof Window

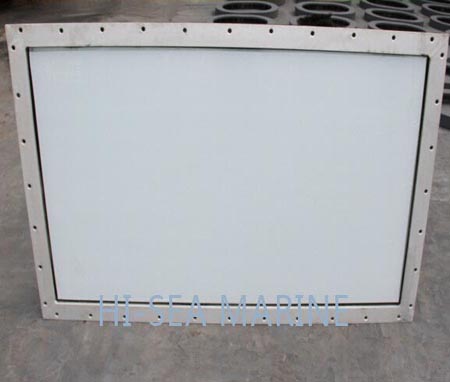

Ship Aluminum Soundproof Window
