Marine Hinged Side Scuttle

Marine Hinged Side Scuttle

This product is a kind of hinged opening side scuttle. It is made of aluminum, steel, stainless steel and copper. This marine hinged side scuttle is used for sea-going ship and warships, and also could used for inland ship. It is approved by GB/T 14413-93 standard. Certificates about this hinged side porthole are CCS, BV, DNV, LR, KR, NK, etc. We can supply four types of this hinged side scuttle: type A-SB, type A-SW, type B-SB, and type B-SW.

Drawing and specifications:

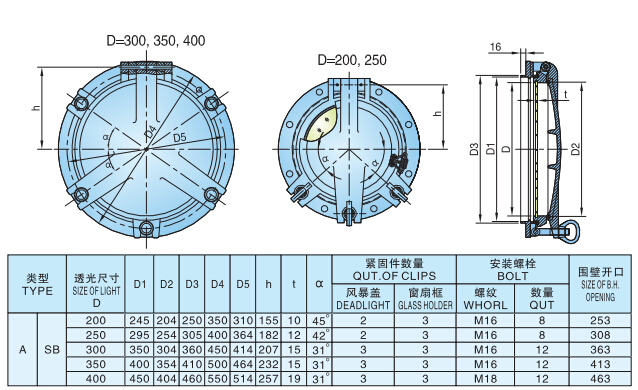

Drawing of Marine Hinged Side Scuttle (Type A-SB)

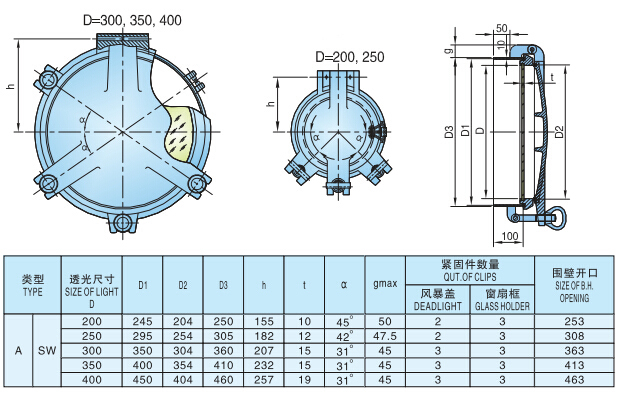

Drawing of Marine Hinged Side Scuttle (Type A-SW)

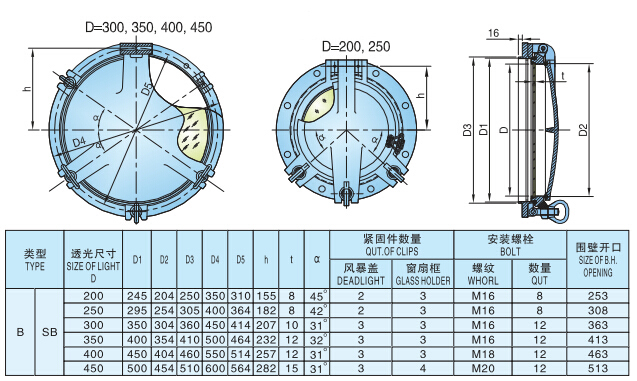

Drawing of Marine Hinged Side Scuttle (Type B-SB)

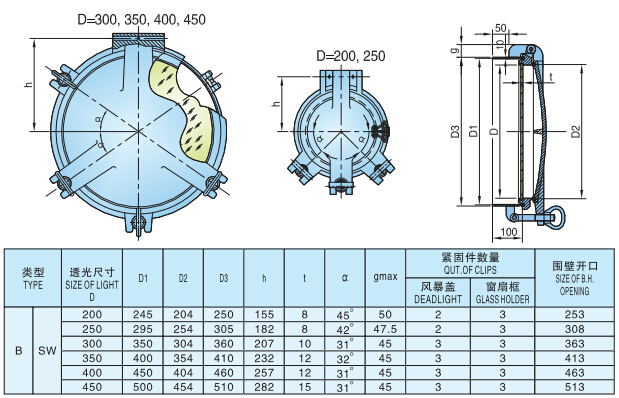

Drawing of Marine Hinged Side Scuttle (Type B-SW)

Product showing:

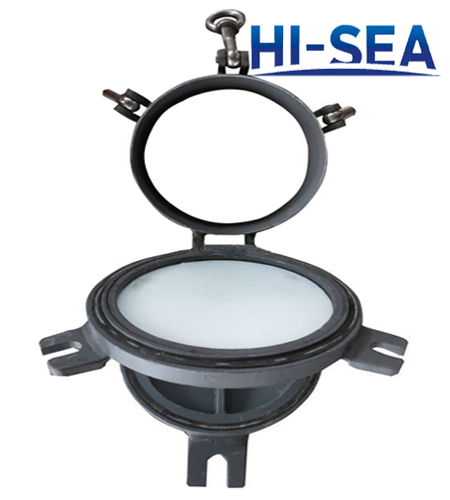

Boat Hinged Openable Side Scuttle

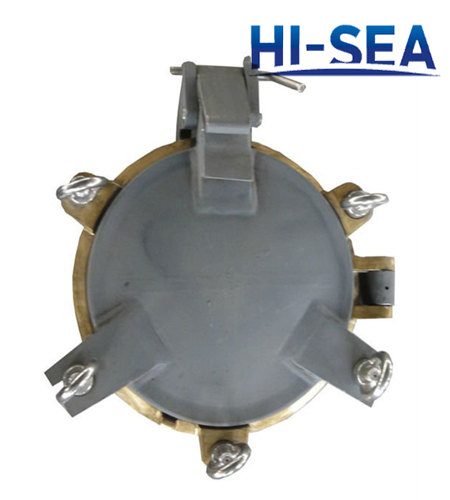

Opening Hinged Porthole for Ship
