Fixed Rectangular Window for Wheel House

Fixed Rectangular Window for Wheel House

Made with aluminum alloy and steel, this product has two types: aluminum alloy bolted fixed rectangular window and steel welded fixed rectangular window. This fixed rectangular house is applicable for various kinds of ships and marine structure, fixed in wheel house, meeting room, bridge and enclosed area for operation. The electric heating glass of it for wheelhouse meet the regulations of ISO 3434 and it is approved by CB/T3226-95 standard. Besides, we have obtained some relevant certificates like CCS, DNV, BV, LR, KR, and NK.

Drawing and Specifications:

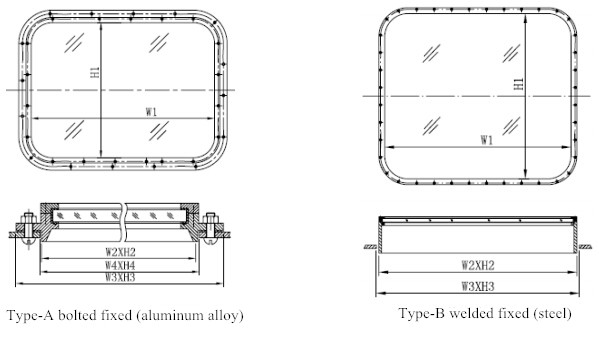

Drawing of Fixed Rectangular Window for Wheel House

Type	Frame type	Name	Frame material
A	BH	heating glass, bolted	aluminum alloy
A	BN	tempered glass, bolted	aluminum alloy
B	WH	heating glass, welded	carbon steel
B	WN	tempered glass, welded	carbon steel

Type

Nominal size

Size of frame

Size of opening

Glass thick

Weight

A

W1×H1

W2×H2

W3×H3

W4×H4

r

BH

BN

BH

BN

800×630

848×678

930×760

852×682

144

12

15

25.5

25.9

800×710

848×758

930×840

852×762

12

15

28.1

28.7

900×630

948×678

1030×760

952×682

12

17

28.2

30.0

900×710

948×758

1030×840

952×762

12

17

30.9

32.9

900×800

948×848

1030×930

952×852

12

17

33.9

36.1

1200×630

1248×678

1330×760

1252×682

15

20

41.6

44.0

1200×710

1248×758

1330×840

1252×762

15

20

45.9

48.6

1200×800

1248×848

1330×930

1252×852

15

20

50.6

53.6

1500×710

1548×758

1630×840

1552×762

15

20

56.1

59.4

1500×800

1548×848

1630×930

1552×852

15

20

61.2

64.9

1800×710

1848×758

1930×840

1852×762

15

20

66.3

70.3

1800×800

1848×848

1930×930

1852×852

15

20

72.4

76.8

1800×900

1848×948

1930×1030

1852×952

15

20

77.5

82.5

Type

Nominal size

Size of frame

Size of opening

Glass thick

Weight

B

W1×H1

W2×H2

W3×H3

W4×H4

r

BH

BN

BH

BN

800×630

848×678

930×760

852×682

144

12

15

41.3

41.8

800×710

848×758

930×840

852×762

12

15

44.2

44.8

900×630

948×678

1030×760

952×682

12

17

45.1

46.9

900×710

948×758

1030×840

952×762

12

17

48.5

50.5

900×800

948×848

1030×930

952×852

12

17

52.4

54.6

1200×630

1248×678

1330×760

1252×682

15

20

60.9

63.3

1200×710

1248×758

1330×840

1252×762

15

20

66.6

69.2

1200×800

1248×848

1330×930

1252×852

15

20

72.2

75.2

1500×710

1548×758

1630×840

1552×762

15

20

79.8

83.1

1500×800

1548×848

1630×930

1552×852

15

20

86.4

90.1

1800×710

1848×758

1930×840

1852×762

15

20

93.1

97.1

1800×800

1848×848

1930×930

1852×852

15

20

100.4

104.8

1800×900

1848×948

1930×1030

1852×952

15

20

108.6

113.6

Product images:

Fixed Rectangular Window for Wheel House

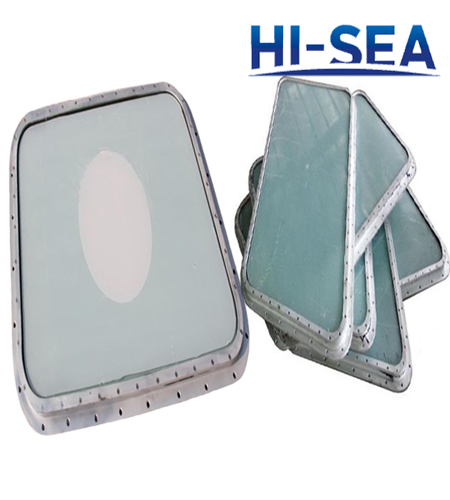

Aluminum Alloy Fixed Ship Window

Fixed Rectangular Window for Wheel House

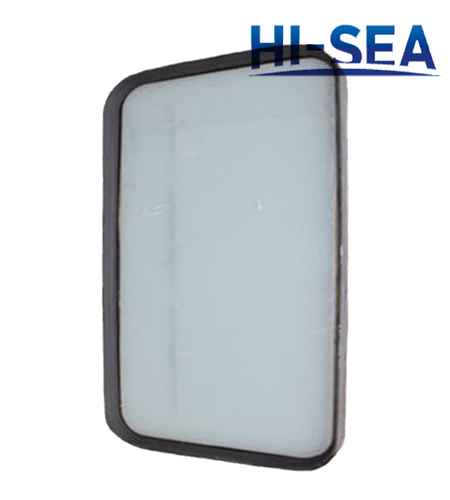

Marine Steel Fixed Rectangular Window

Fixed Rectangular Window for Wheel House

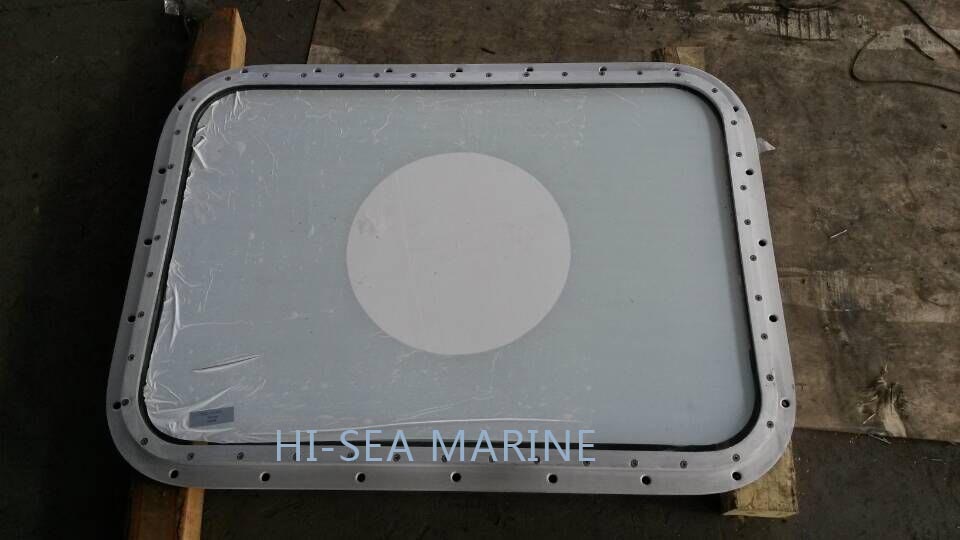

Boat Aluminum Fixed Window with Clear View Screen

Marine Window

Fixed Rectangular Window for Wheel House

Contact with us now

Type	Nominal size	Size of frame		Size of opening		Glass thick		Weight
A	W1×H1	W2×H2	W3×H3	W4×H4	r	BH	BN	BH	BN
	800×630	848×678	930×760	852×682	144	12	15	25.5	25.9
	800×710	848×758	930×840	852×762		12	15	28.1	28.7
	900×630	948×678	1030×760	952×682		12	17	28.2	30.0
	900×710	948×758	1030×840	952×762		12	17	30.9	32.9
	900×800	948×848	1030×930	952×852		12	17	33.9	36.1
	1200×630	1248×678	1330×760	1252×682		15	20	41.6	44.0
	1200×710	1248×758	1330×840	1252×762		15	20	45.9	48.6
	1200×800	1248×848	1330×930	1252×852		15	20	50.6	53.6
	1500×710	1548×758	1630×840	1552×762		15	20	56.1	59.4
	1500×800	1548×848	1630×930	1552×852		15	20	61.2	64.9
	1800×710	1848×758	1930×840	1852×762		15	20	66.3	70.3
	1800×800	1848×848	1930×930	1852×852		15	20	72.4	76.8
	1800×900	1848×948	1930×1030	1852×952		15	20	77.5	82.5

Marine Window

Fixed Rectangular Window for Wheel House
