Marine A0 Fireproof Rectangular Window

Marine A0 Fireproof Rectangular Window

This product can be made with aluminum or steel. It is a fire proof rectangular window which can be opened. With high quality, it meets a variety of quality certification like CCS, DNV, BV, LR, KR, NK, etc. It is used for oil tanker, drilling platform, chemical vessel and oil area tug which has a less than 60 flash point. If needed, we can offer heating glass.

Drawing and specifications:

Marine A0 Fireproof Rectangular Window

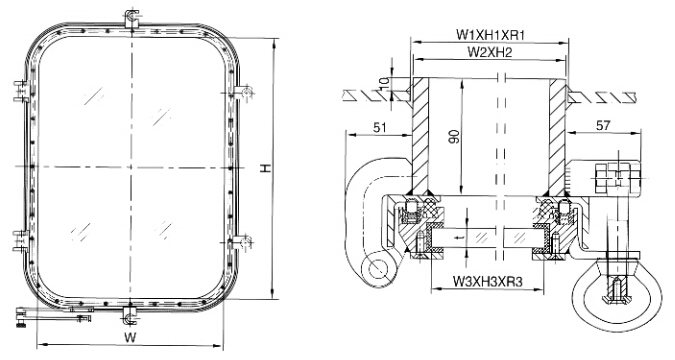

Drawing of Marine A0 Fireproof Rectangular Window

mm

No

Nominal size

WH

Size of opening

W1H1R1

External size

W2H2

Glass thickness

Size of glass

W3H3R3

Heavy type

Medium type

1

300425

352477R76

348473

15

15

318443R59

2

355500

407552R76

403548

15

15

373518R59

3

400560

452612R76

448608

15

15

418578R59

4

450630

502682R126

498678

15

15

468648R109

5

500700

522762R126

548758

15

15

518728R109

6

560800

612852R126

608848

15

15

578818R109

Identification example:

Clear size is 560800mm for A0 class fireproof rectangular window-----A0 class fireproof rectangular window 560800mm

Product showing:

Marine A0 Fireproof Rectangular Window

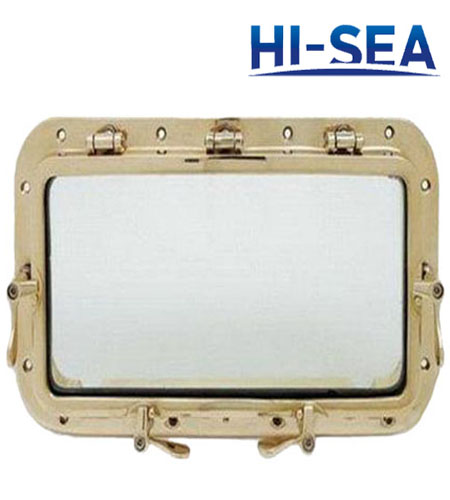

A0 Stainless Steel Fire Proof Rectangular Window for Ship

Marine A0 Fireproof Rectangular Window

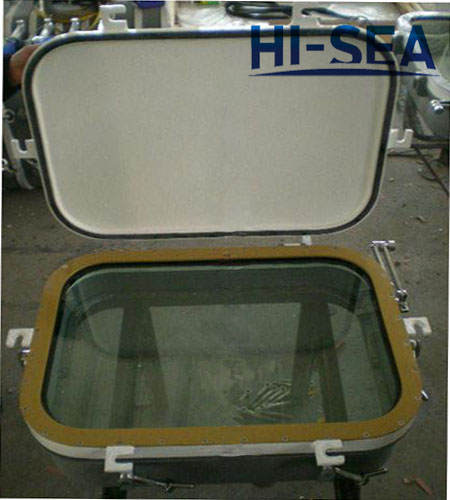

Yacht A0 Aluminum Fire Resistant Rectangular Window

Certificates:

Marine A0 Fireproof Rectangular Window
