Marine Fire Resistant Service Window

Marine Fire Resistant Service Window

Made with steel pr aluminum, this product is a kind of fire resistant service windows for ship. It is applied to the galleys, pantries and canteens. We can supply two type of this fire resistant window: type A-plate structure sliding window, type B-blade sliding window. This marine fire resistance service window is approved by the CB*3228-87 standard and I meets all the requirements of these certificates: CCS, DNV, BV, LR, KR, NK etc.

Drawing and specifications:

Marine Fire Resistant Service Window

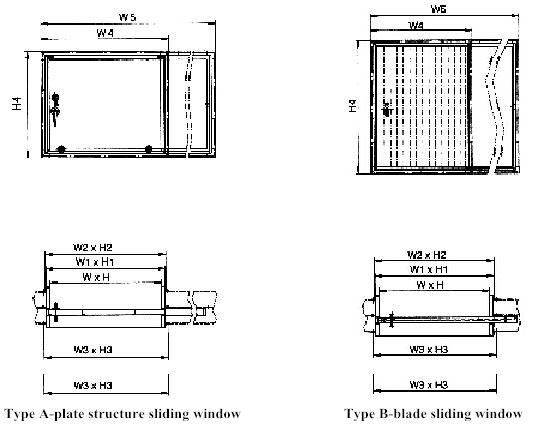

Drawing of Marine Fire Resistant Service Window


Type

Size of clear

Size of opening

Size of frame

Slide-way

Width of frame

Weight(kg)

A

B

Wh

W2h2

W1h1

W3h3

W4h4

W5

b

b1

steel

aluminum

A, B

A, B

A, B

A, B

A, B

A, B

A, B

A

B

A

B

630500

696566

690560

720590

750620

1350

180

120

31.8

26.9

16.2

12.7

900630

966696

960690

990720

1020750

1890

45.7

38.2

23.1

17.7

1100800

1167867

1160860

1190890

1220920

2290

220

160

62.6

52.0

31.8

23.7

14001100

14671067

14601060

14901090

15201120

2890

86.8

69.3

44.5

31.0

18001100

18681168

18601160

18901190

19201120

3690

260

300

115.2

91.9

59.2

40.6

23001200

23681268

23601260

23901290

24201320

4690

118.8

116.5

76.5

51.0


Product dispalying:

Marine Fire Resistant Service Window

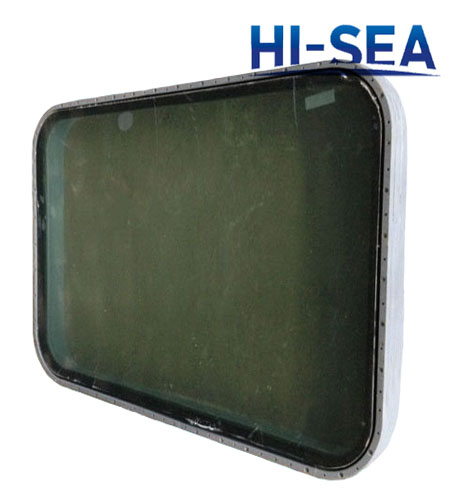

Aluiminum Fireproof Rectangular Service Window for Ship

Marine Fire Resistant Service Window

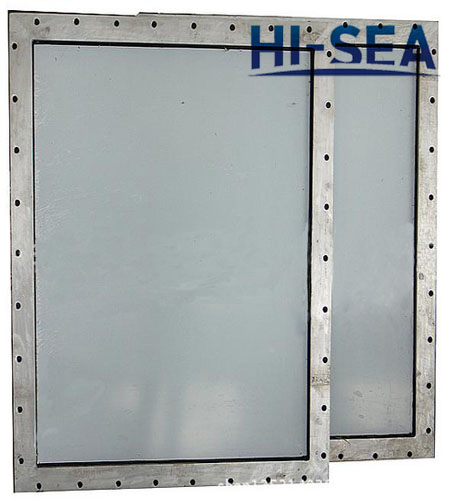

Steel Fire Proof Boat Window
