Brass Opening Side Scuttle for Ship

Brass Opening Side Scuttle for Ship

Made with copper, this product side scuttle can be called as porthole. Approved by the GB/T14413-93 standard, It is used for sea-going ships and warships, it is also can be used for inland ship. This side scuttle can be with or without deadlight and the deadlight can be called as storm cover.

List for model of side scuttle

Code: “1” stands for steel, “2” stands for copper, “3” stands for aluminum

Name

Type

Size of clear

(mm)

Opening way

Installation

Code of material made up

Opening of the deadlight

Glass

Application

Opening

Non-opening

Bolted

Welded

Heavy

A

200

250

300

350

400

Left hand (L)

Right hand

(R)

Total hinged

(S)

Fixed

(N)

Bolted (B)

Welded(W)

112

212

222

Hook type

(G)

Paw type

(J)

Clear glass (Y1)

Ground glass (Y2)

above full load waterline and below bulkhead deck or freeboard deck with watertight and gastight requirements

Medium

B

200

250

300

350

400

450

Left hand (L)

Right hand (R)

Total hinged

(S)

Fixed

(N)

112

222

333

212

222

233

above bulkhead deck or free board deck of passenger ships, or the ends of superstructure

Light

C

200

250

300

350

400

450

Left hand

(L)

Right hand (R)

Fixed

(N)

220

330

110

210

220

230

---

above bulkhead deck or free board deck of passenger ships, or the ends of superstructure

Product displaying:

Brass Opening Side Scuttle for Ship

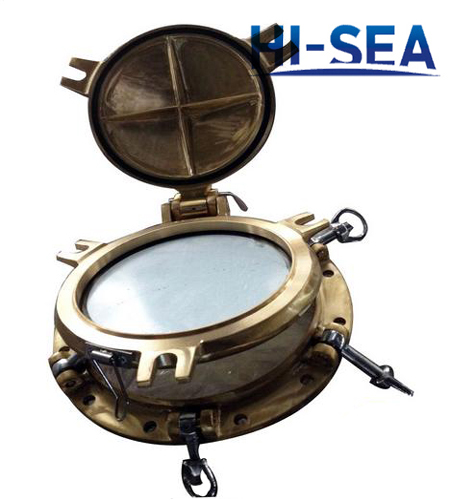

Brass Opening Side Scuttle with Storm Cover

Brass Opening Side Scuttle for Ship

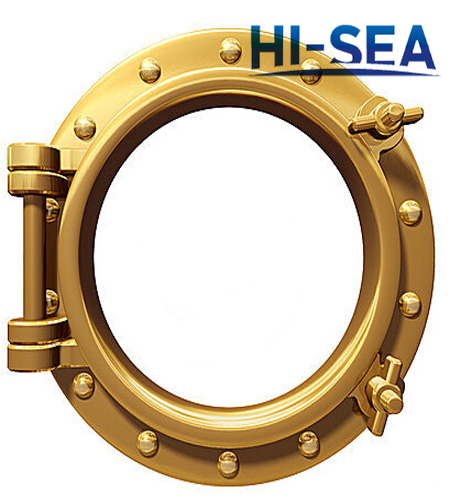

Copper Opening Side Scuttle without Deadlight

Certificates:

Brass Opening Side Scuttle for Ship
