Marine Steel Fixed Rectangular Window

Marine Steel Fixed Rectangular Window

This product is a kind of non opening rectangular windows made with steel and used for deck house, light steel door and skylight. It has two types: type A-fixed window, type B-fixed window with guard bar. This steel fixed rectangular window for ship is approved by GB3890-83 standard and it meets all the requirements of these certificates CCS, DNV, BV, LR, KR, NK, etc.


Drawing and specifications:

Marine Steel Fixed Rectangular Window

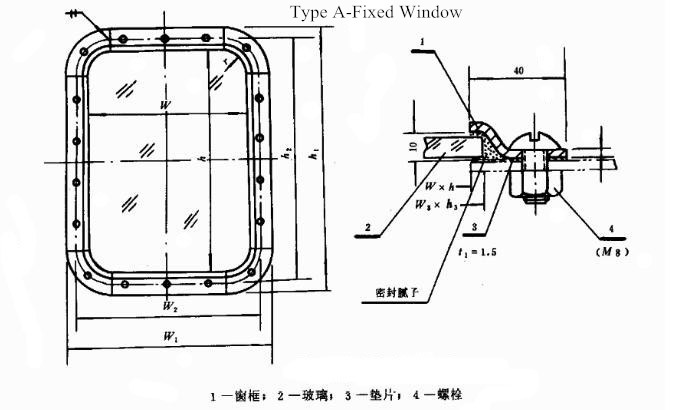

Drawing of Marine Steel Fixed Rectangular Window (Type A)

mm

Size of clear and opening

External size

QTY of bolt

Glass

Weight

(kg)

Wh

r

W1h1

W2h2

W3h3

thickness

300425

50

380505

354479

16

314439

8

3.9

355500

50

435580

409554

20

369514

8

5.0

400560

50

480640

454614

20

414574

8

6.0

450630

100

530710

504684

22

464644

8

6.3

500710

100

580790

554764

24

514724

10

9.4

560800

100

640880

614854

28

574814

10

11.5

900630

100

980710

954684

32

914644

12

16.0

Marine Steel Fixed Rectangular Window

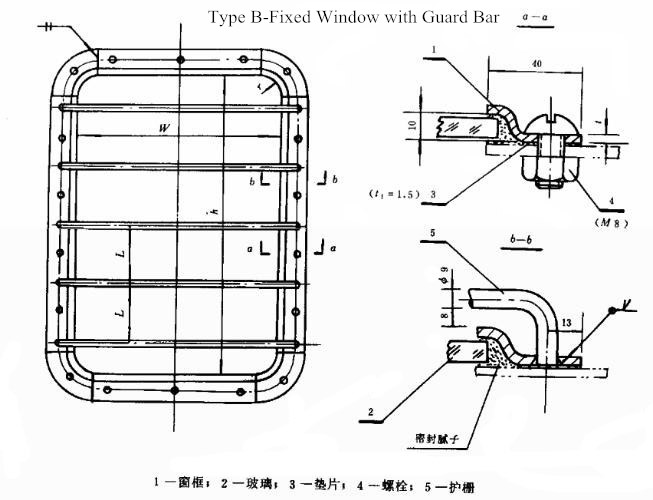

Drawing of Marine Steel Fixed Rectangular Window (Type B)

mm

Size of clear and opening

External size

Guard bar

QTY of bolt

Glass

Weight

(kg)

Wh

r

W1h1

W2h2

QTY

L

W3h3

thickness

300425

50

380505

354479

5

90

16

314439

8

4.9

355500

50

435580

409554

6

90

20

369514

8

6.4

400560

50

480640

454614

6

95

20

414574

8

7.6

450630

100

530710

504684

6

100

22

464644

8

7.9

500710

100

580790

554764

7

100

24

514724

10

11.5

Mark example:

Size of clear: 300425mm, fixed window without guard bar------A 300425mm GB3890-83 rectangular window


Product showing:

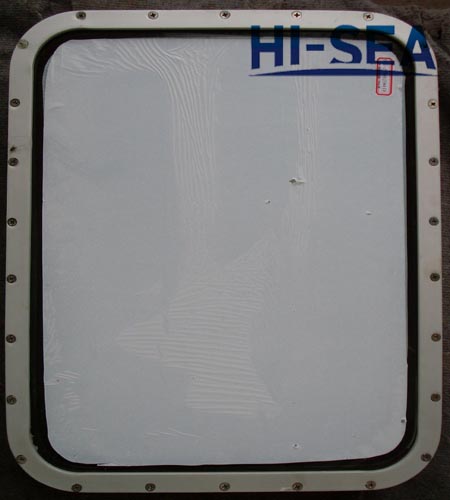

Marine Steel Fixed Rectangular Window

Ship Steel Non Opening Rectangular Window

Marine Steel Fixed Rectangular Window

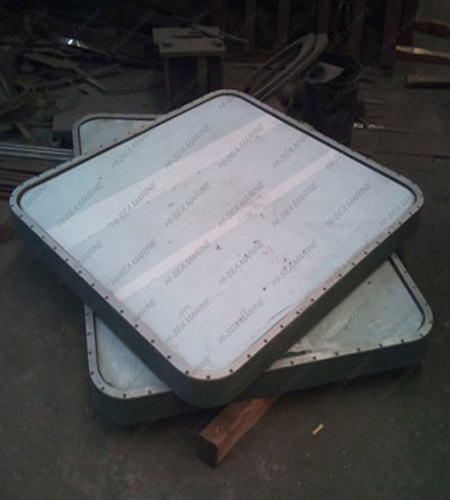

Yacht Steel Welded Non Opening Window
