Light Aluminum Marine Sliding Window

Light Aluminum Marine Sliding Window

Approved by CB/T3765-96, this product is kind of sliding windows. It is made of aluminum and used for deck house above freeboard deck and superstructure of various kinds of vessels. We can supply two types of this sliding window: square angle window and round angle window; and the sizes are customized. Besides, CCS, BV, ABS, DNV, NK, LR, KR and RINA certificates can be provided.


Drawing and specifications:

Light Aluminum Marine Sliding Window

Drawing of Light Aluminum Marine Sliding Window

Nominal size

Size of clear

Size of frame

Size of opening

Size of glass

Bolt QUT

Max. kpa

Weight

wh

whr

w1h1r1

w2h2r2

w3h3r3

thickness

w4h4r4

t=8

t=6

t=8

t=6

740500

35550050

82558894

890650125

840600100

6, 8

37351858

20

45

26

20.0

18.9

830560

40056050

91864894

980710125

930660100

41857858

24

36

21

21.9

20.7

930630

450630100

1018718144

1080780175

1030730150

468648108

26

28

16

24.8

23.3

1030710

500710100

1118798144

1180860170

1130810150

518728108

30

23

13

28.0

26.1

500630

23563050

58871894

650780125

600730100

25364858

18

66

37

18.6

17.8

600710

28571050

68879894

750860125

700810100

30372858

22

46

26

21.5

20.4

750800

36080050

83888894

900950125

850900100

37881858

46

30

18

25.6

24.0


Product pictures:

Light Aluminum Marine Sliding Window

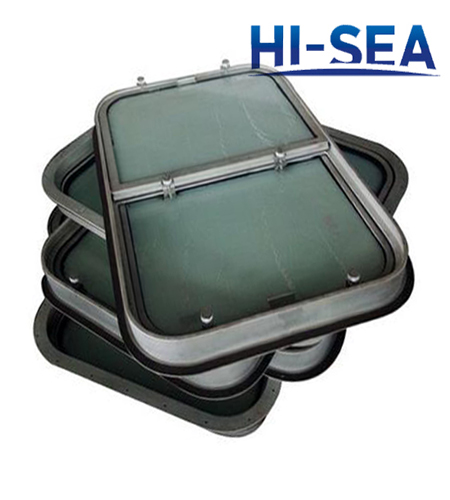

Yacht Aluminum Sliding Window

Light Aluminum Marine Sliding Window

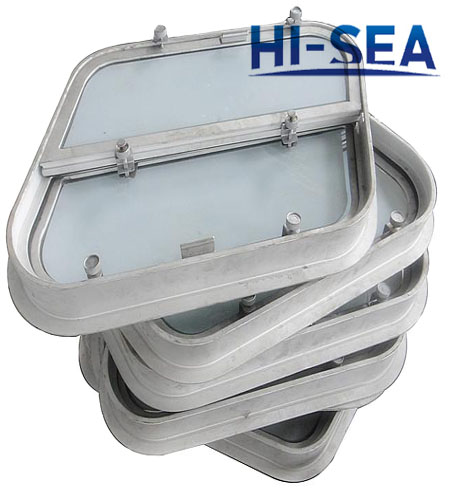

Ship Sliding Aluminum Window

Light Aluminum Marine Sliding Window

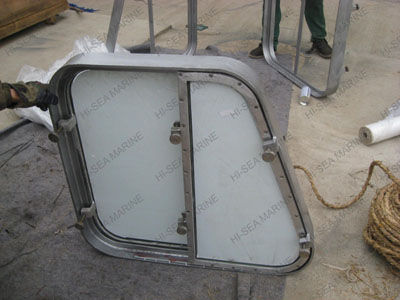

Aluminum Sliding Boat Window
