A60 Soundproof Fire Rectangular Window

A60 Soundproof Fire Rectangular Window

This soundproof fire window is used in the wheel house and cabin on various types of chemical tankers, LPG vessels, oil tankers and offshore oil drilling platform with the requirement of A60 fire rating. The glass of the rectangular window made with compound material which is fire resistant and soundproof.

Product features:

1. Model: soundproof fire window

2. Length: 400-2000

3. Width: 560-1200

4. Glass thickness: 8/10/12/15/19

5. Certificates: ABS, CCS, BV, DNV, GL, etc.

6. Advantages: fire resistant of A60 and thermal insulation, high soundproof of 50dB

Drawing and specifications:

A60 Soundproof Fire Rectangular WindowA60 Soundproof Fire Rectangular Window

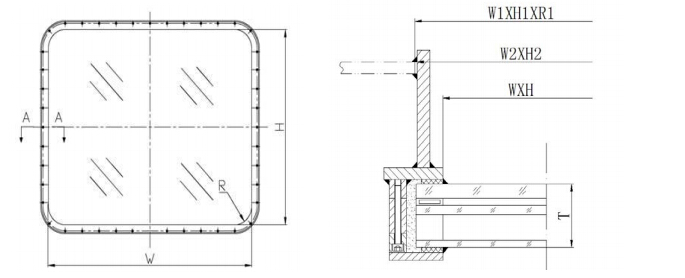

Drawing of A60 Soundproof Fire Rectangular Window

mm

Nominal size

WHR

External size

W2H2R2

Size of opening

W1H2R3

Glass size

W3H3R3

Glass thickness

E

F

400560

R50

510670

R105

452612

R120

340465

R76

12+6A+8+22A+5

12+6A+8+22A+5

450630

R100

560740

R155

502682

395540

R126

12+6A+8+22A+5

12+6A+8+22A+5

500710

610820

552762

440600

15+6A+8+22A+5

12+6A+8+22A+5

900630

1010740

952682

R170

490670

15+6A+8+22A+5

12+6A+8+22A+5

1000800

1110910

1052852

540750

19+6A+8+22A+5

12+6A+8+22A+5

1200800

1310910

1252852

600840

__

15+6A+8+22A+5

1400800

1510910

1452852

940670

According to capsulation or clients requirements

16001000

17101110

16521052

1040750

18001200

19101310

18521252

1140840

20001200

21101310

20521252

1240840

Identification example:

Class A60 high soundproof rectangular window with clear size of 1200800mm---class A60 high soundproof fireproof rectangular window 1200800

Product displaying:

A60 Soundproof Fire Rectangular Window

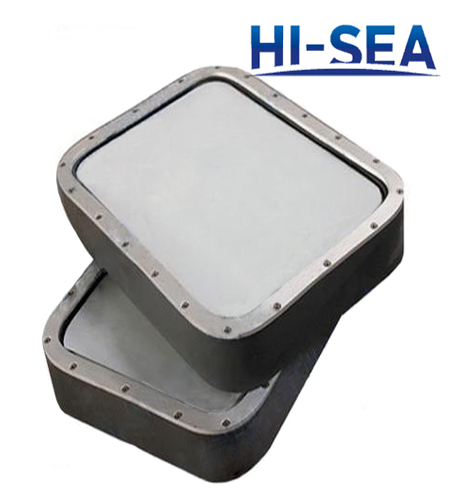

A60 Soundproof Rectangular Window

A60 Soundproof Fire Rectangular Window

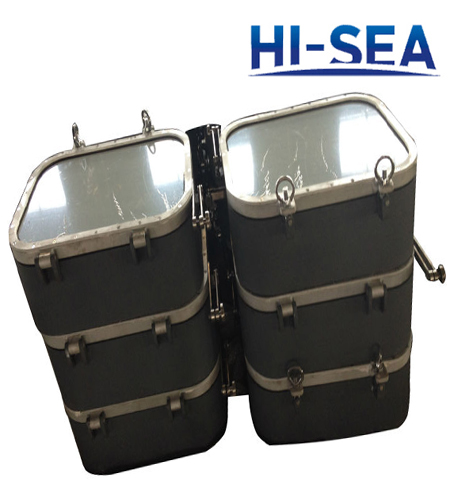

A60 Sound Proof Fire Window
