Steel Welded Fixed Rectangular Window for Wheel House

Steel Welded Fixed Rectangular Window for Wheel House

Made with carbon steel, this ship welded fixed rectangular window is installed in the wheel house, bridges, enclosed spaces which is used for observation and operation. Approved by CB/T3226-95, this steel welded rectangular window also meets the requirements of these certificates like CCS, DNV, BV, LR, KR, NK, etc.

Drawing and specifications:

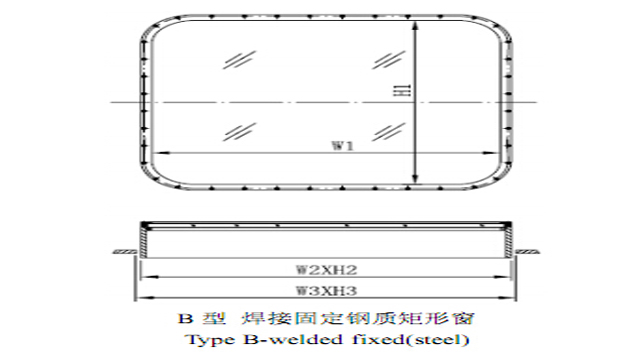

Drawing of Steel Welded Fixed Rectangular Window for Wheel House

Type

Frame type

Name

Frame material

heating glass, welded

carbon steel

tempered glass, welded

Type	Nominal size	Size of frame		Size of opening		Glass thick		Weight
B	W1×H1	W2×H2	W3×H3	W4×H4	r	BH	BN	BH	BN
	800×630	848×678	930×760	852×682	144	12	15	41.3	41.8
	800×710	848×758	930×840	852×762		12	15	44.2	44.8
	900×630	948×678	1030×760	952×682		12	17	45.1	46.9
	900×710	948×758	1030×840	952×762		12	17	48.5	50.5
	900×800	948×848	1030×930	952×852		12	17	52.4	54.6
	1200×630	1248×678	1330×760	1252×682		15	20	60.9	63.3
	1200×710	1248×758	1330×840	1252×762		15	20	66.6	69.2
	1200×800	1248×848	1330×930	1252×852		15	20	72.2	75.2
	1500×710	1548×758	1630×840	1552×762		15	20	79.8	83.1
	1500×800	1548×848	1630×930	1552×852		15	20	86.4	90.1
	1800×710	1848×758	1930×840	1852×762		15	20	93.1	97.1
	1800×800	1848×848	1930×930	1852×852		15	20	100.4	104.8
	1800×900	1848×948	1930×1030	1852×952		15	20	108.6	113.6

Product images:

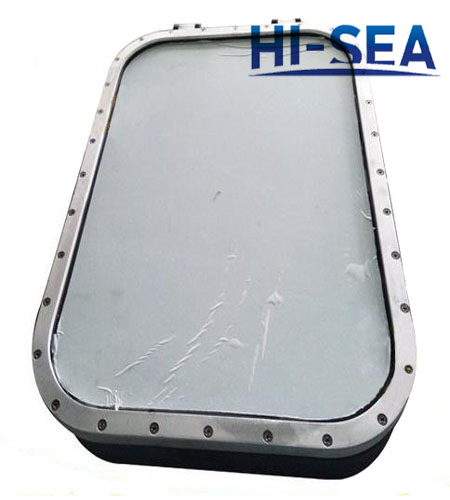

Steel Welded Fixed Window

More products please click: http://www.hiseamarine.com/marine-window-3296.html
