Marine Aluminum Trapezoid Window

Marine Aluminum Trapezoid Window

This trapezoid window for ship is made with aluminum. It is bolt fixed type and installed in the wheel house. The shape of this bolted fixed window can be rectangular, parallelogram or trapezoidal. This product is approved by CB/T3226-95 and meets the requirements of ISO9001-2000. To meet clients special demand, we can offer OEM service and produce the product as per customers drawings and samples.

Features:

1. Standard: CB/T 3226-95

2. Meet ISO9001-2000

3. Material: Aluminum/Aluminum alloy

4. Safety glass: Toughened glass

5. Type: bolt fixed

6. Application: Used for wheel house and meeting room on ship

7. Certificate: LR, BV, ABS, GL, NK, CCS, etc.

Drawing and specifications:

Marine Aluminum Trapezoid Window

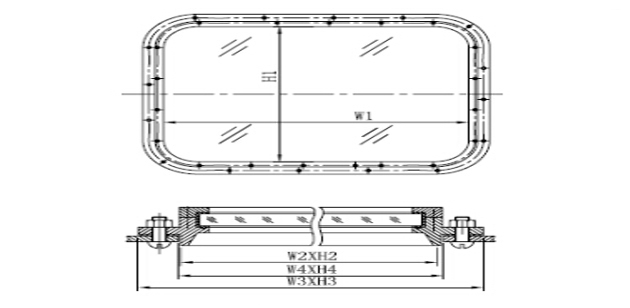

Drawing of Marine Aluminum Trapezoid Window

Type

Frame type

Name

Frame material

A

BH

heating glass, bolted

aluminum alloy

BN

tempered glass, bolted


Type

Nominal size

Size of frame

Size of opening

Glass thick

Weight

A

W1H1

W2H2

W3H3

W4H4

r

BH

BN

BH

BN

800630

848678

930760

852682

144

12

15

25.5

25.9

800710

848758

930840

852762

12

15

28.1

28.7

900630

948678

1030760

952682

12

17

28.2

30.0

900710

948758

1030840

952762

12

17

30.9

32.9

900800

948848

1030930

952852

12

17

33.9

36.1

1200630

1248678

1330760

1252682

15

20

41.6

44.0

1200710

1248758

1330840

1252762

15

20

45.9

48.6

1200800

1248848

1330930

1252852

15

20

50.6

53.6

1500710

1548758

1630840

1552762

15

20

56.1

59.4

1500800

1548848

1630930

1552852

15

20

61.2

64.9

1800710

1848758

1930840

1852762

15

20

66.3

70.3

1800800

1848848

1930930

1852852

15

20

72.4

76.8

1800900

1848948

19301030

1852952

15

20

77.5

82.5

Product displaying:

Marine Aluminum Trapezoid Window

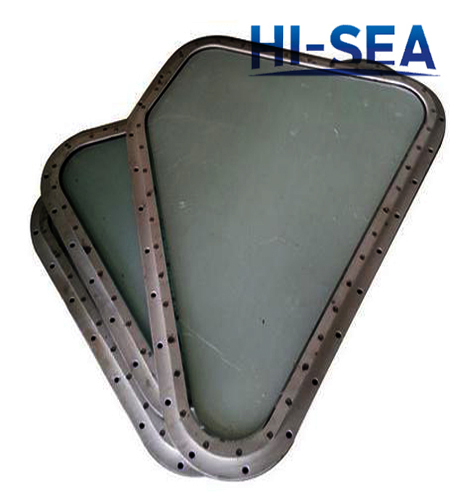

Aluminum Trapezoidal Ship Window


Marine Aluminum Trapezoid Window

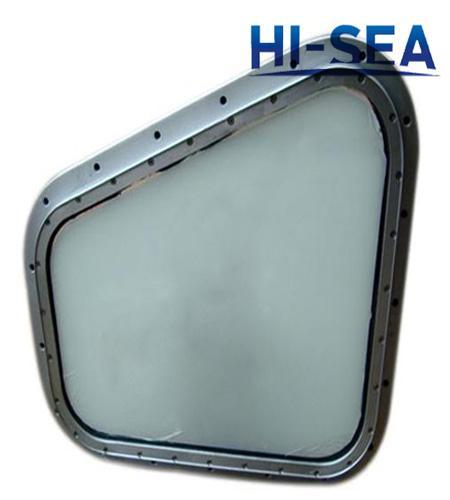

Boat Bolted Fixed Trapezoidal Window

Marine Aluminum Trapezoid Window

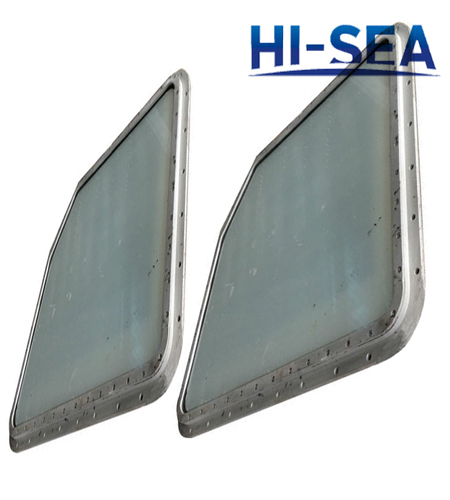

Boat Irregular Aluminium Window

More products please click: http://www.hiseamarine.com/marine-window/
